Service


Before Each Use	Check snow blade for loose fasteners.
Every 10 Hours or Each Year	Check skid shoes and scraper plate and replace if necessary. Lubricate required locations.
As Required	Check skid shoes.

MX10431

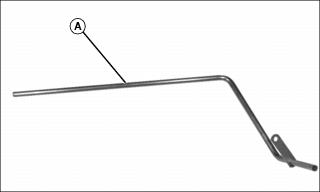

Lubricate long end of lift handle rod (A) using general purpose grease.

MX10425

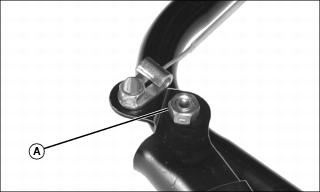

1. Lubricate release grip hex bolt (A) using general purpose spray lubricant.

MX10412

Picture Note: Bottom View

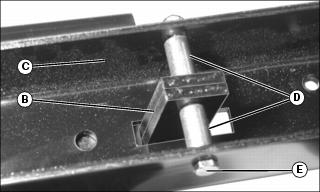

2. Lubricate angle lock bars (B), push channel assembly (C) and spacers (D) where they contact hex bolt (E) using general purpose spray lubricant.

MX10437

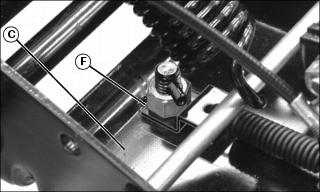

3. Lubricate pivot bolt (F) on push channel assembly (C) using general purpose spray lubricant.

MX10430

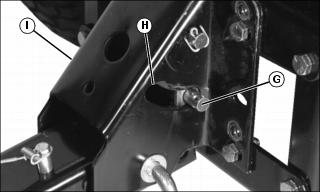

4. Lubricate lift link (G) and slot (H) in pivot support bracket (I) using general purpose spray lubricant.

MX10434

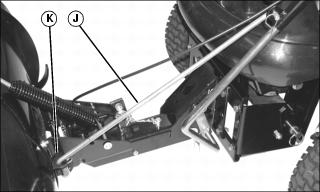

5. Lubricate blade pivot rod (J) at blade pivot shaft (K) using general purpose spray lubricant.
