Assembly
Identify Parts
Parts in Kit
Bag of Parts
Attach Parts to Blade

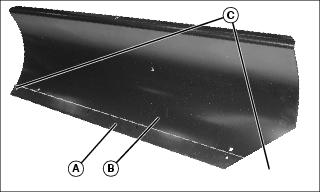

1. Attach scraper plate (A) to front of blade (B) using two 5/16X3/4 in. carriage bolts and 5/16 in. lock nuts (C).
2. Attach two skid shoes (D) to rear of blade using two 5/16X3/4 in. carriage bolts (E), two 5/16X1 in. carriage bolts (F), four 5/16 in. washers and four 5/16 in. lock nuts (G).

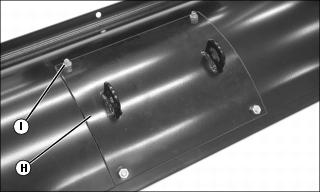

3. Attach reinforcement plate (H) to rear of blade using four 5/16X3/4 in. carriage bolts and 5/16 in. lock nuts (I).
Install Angle Lock Bars

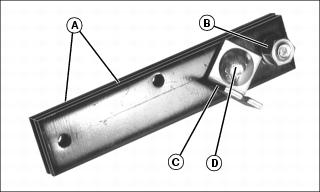

1. Make sure holes are aligned and join two angle lock bars (A) together using 3/8X1-1/4 in. carriage bolt, 3/8 in. lock washer and 3/8 in. nut (B). Do not tighten.
2. Install cable mount bracket (C) as shown using 3/8X1-1/4 in. carriage bolt, 3/8 in. lock washer and 3/8 in. nut (D).
c CAUTION: Avoid injury! Components are installed under spring tension. Wear eye protection and use proper tools when installing and removing components with spring tension.
|
NOTE: Hold firmly during removal and installation of spring.
4. Insert round hook end of extension spring (E) through hole in spring mount bracket (F) on push channel assembly.
5. Insert straight hook end of angle lock spring through hole in angle lock bars (G), then insert angle lock bars through push channel assembly (H) as shown.
6. Place one .28 IDX.95 in. spacer (I) between each side of angle lock bars and push channel assembly. Install 1/4X3-1/4 in. hex bolt (J) through push channel assembly, spacers and lock bars. Secure with 1/4 in. lock nut (K).
Install Spring Mount Rod
1. Using a hammer and a block of wood for support, install 3/8 in. palnut (A) onto spring mount rod (B).

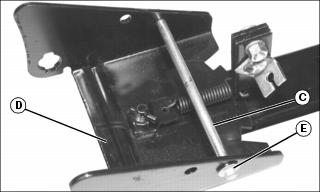

2. Insert spring mount rod (C) through holes nearest angle lock bars in push channel assembly (D).
3. Using a hammer and a block of wood for support, install 3/8 in. palnut (E) onto other end of spring mount rod.
Attach Blade to Push Channel Assembly
1. Install 1/8 in. cotter pin (A) through hole near bend in blade pivot shaft (B). Secure by spreading ends.

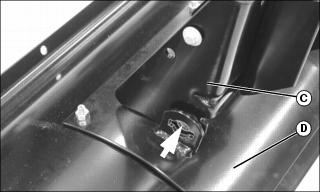

2. Align notched holes in push channel assembly (C) with notched holes in reinforcement plate (D).
3. With bend facing up, install blade pivot shaft (B) through notched holes from left.
4. Install 1/8 in. cotter pin (E) through end hole in blade pivot shaft. Secure by spreading ends.
Install Trip Spring

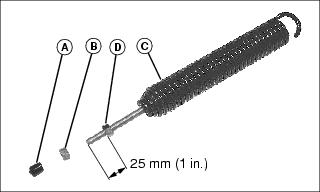

1. Remove plastic cap (A) and one 3/8 in. nut (B) from trip spring (C).
2. Adjust remaining 3/8 in. nut (D) so that 25 mm (1 in.) of threads are exposed.

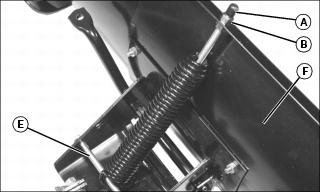

3. Hook trip spring around spring mount rod (E).
4. Insert threaded end of trip spring through hole in top edge of blade (F).
5. Install original 3/8 in. nut (B) and plastic cap (A).
Attach Control Cable to Cable Mount Bracket
1. Install 5/16 in. jam nut (A) onto threaded end of control cable (B) (end of cable without rubber weather caps) so that 19 mm (3/4 in.) of threads are exposed.
2. Insert control cable into cable mount bracket (C).
3. Install 5/16 in. jam nut (D).

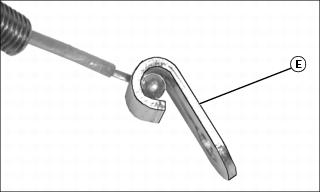

4. Insert ball end of control cable through clevis lanyard fitting (E).
IMPORTANT: Avoid damage! Align clevis lanyard fitting with cable mount bracket. Misalignment may cause binding of control cable. |

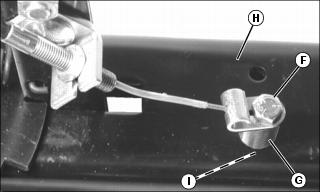

5. Install 1/4X1-1/4 in. hex bolt (F) through clevis lanyard fitting, .39 IDX.62 in. spacer (G) and left hole in push channel assembly (H). Secure with 1/4 in. lock nut (I).
Attach Release Grip to Lift Handle Tube

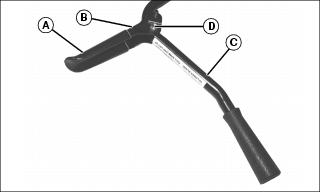

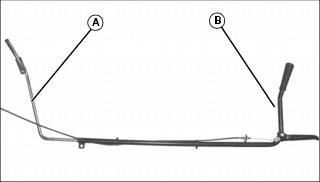

1. Install plastic grip (A) onto release grip (B).
NOTE: Release grip will bend inward while tightening lock nut. Release grip must pivot freely after installation.
2. Attach release grip to lift handle tube (C) using 5/16X1-1/4 in. hex bolt and 5/16 in. lock nut (D). Do not over tighten. Release grip must pivot freely.
Attach Control Cable to Lift Handle Tube

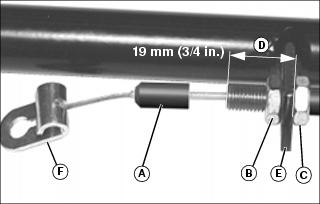

1. Remove rubber cap (A) and outer 5/16 in. jam nut (B) from controlcable.
2. Adjust inner 5/16 in. jam nut (C) on cable so that 19 mm (3/4 in.) of threads (D) are exposed.
3. Insert cable into cable mount bracket on lift handle tube (E).
4. Install outer 5/16 in. jam nut (B) on cable and tighten.
5. Install rubber cap (A) on threaded end of cable.
6. Insert ball end of control cable through clevis lanyard fitting (F).
NOTE: Clevis lanyard fitting must pivot freely after installation.
7. Install clevis lanyard fitting onto weld bolt on release grip (G) with 1/4 in. acorn nut (H). Do not over tighten. Clevis lanyard fitting (F) must pivot freely.
8. Secure control cable to lift tube handle with two tie straps (I).
Assemble Lift Handle Tube to Lift Handle Rod

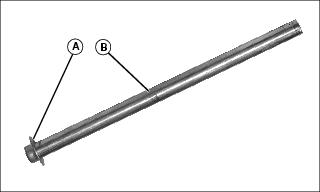

1. Lubricate long end of lift handle rod (A) using tube of grease.
2. Insert long end of lift handle rod (A) into lift handle tube (B).
Assemble Pivot Support

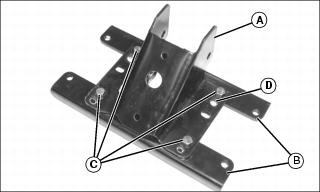

1. Attach pivot support bracket (A) to two angle support brackets (B) using four 3/8X1 in. hex bolts and 3/8 in. flanged lock nuts (C). Tire size determines which mounting hole should be used, use appropriate mounting hole for your specific machine configuration. Do not tighten.
• Use mounting configuration as shown if machine has 15 in. tires.
• Use mounting configuration using hole (D) if machine has 16 in. tires.

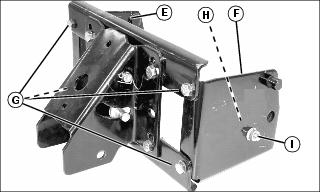

2. Attach right hitch plate (E) and left hitch plate (F) to angle support brackets using four 3/8X1 in. hex bolts and 3/8 in. flanged lock nuts (G).
4. Install two 3/8X3/4 in. hex bolts (H) from inside of right and left hitch plates. Secure with 3/8 in. flanged lock nuts (I).
