Service Transmission
Checking Automatic Transmission Fluid Level
2. Allow oil in transmission to cool before checking.
3. On rear of machine, there is a sight hole (A) through left rear side of fuel tank. Transmission reservoir can be seen through sight hole.
4. Check full (B) and add (C) marks on reservoir bottle which will indicate if fluid needs to be added.
5. Add transmission fluid if necessary.
Adding Automatic Transmission Fluid
1. Tip seat forward and slide seat suspension completely forward.

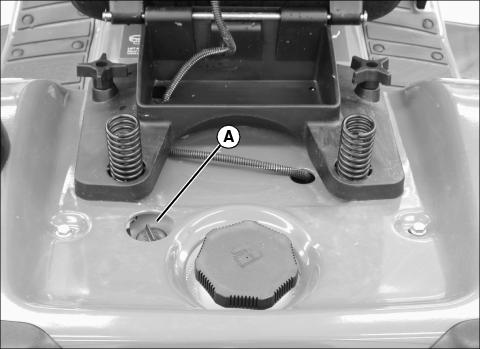

2. Remove cap (A) from transmission reservoir. Cap is located under seat and left of fuel cap.
3. Fill to correct level using specified transmission oil (motor oil). Do not overfill.
