Assembly
Charge and Connect Battery
c CAUTION: Avoid injury! The battery produces a flammable and explosive gas. The battery may explode:
· Do not smoke or have open flame near battery.
· Wear eye protection and gloves.
· Never check battery charge by placing a metal object across the posts. Use a voltmeter or hydrometer.
· Do not jump start or charge a frozen battery. Warm battery to 16°C (60°F).
|
1. Remove and discard the red positive (+) protective cap from the positive (+) battery terminal.
2. Charge the battery.
· Battery is fully charged at 12.6 volts.
MX17056
MX7686

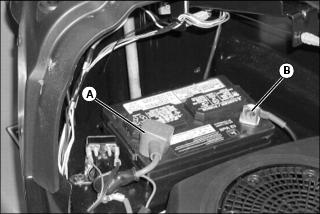

3. Connect positive (+) battery cable (A) to battery.
4. Connect negative (-) battery cable (B).
5. Apply general purpose grease or silicone spray to terminal to help prevent corrosion.
6. Slide red cover over positive battery cable.
Check Tire Pressure
|
c CAUTION: Avoid injury! Explosive separation of tire and rim parts is possible when they are serviced incorrectly:
· Do not attempt to mount a tire without the proper equipment and experience to perform the job.
· Do not inflate the tires above the recommended pressure.
· Do not weld or heat a wheel and tire assembly. Heat can cause an increase in air pressure resulting in an explosion. Welding can structurally weaken or deform the wheel.
· Do not stand in front or over the tire assembly when inflating. Use a clip-on chuck and extension hose long enough to allow you to stand to one side.
|
1. Check tires for damage.
2. Check tire pressure with an accurate gauge.
3. Check that tires have equal air pressure. Add or remove air, if necessary.
Tire Size
|
Pressure
|
Front:
Models L100, 110 and L118
· 15 x 6.00 - 6
Models L120 and L130
· 16 x 6.5 - 8
|
97 kPa (14 psi)
83 kPa (12 psi)
|
Rear:
Models L100 and L110
· 20 x 8.0 - 8
Model L118
· 20 x 10.0 - 8
Models L120 and L130
· 22 x 9.5 - 12
|
69 kPa (10 psi)
69 kPa (10 psi)
69 kPa (10 psi)
|
Adjust Mower Level
Adjust mower level. (See Adjusting Mower Level in the OPERATING section.)
Check Engine Oil Level
Check engine oil level. (See Checking Engine Oil Level in the SERVICE ENGINE section.)
Check Machine Safety System
Perform safety system check to make sure the electronic safety interlock circuit is functioning properly. Perform all tests. (See Testing Safety System in the OPERATING section.)
Break-In Electric PTO Clutch (If Equipped)
1. Start engine and move machine to flat level surface.
MX10501

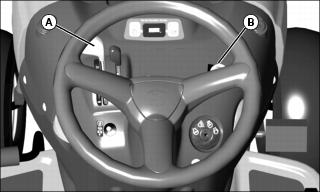

2. Push throttle lever (A) up to full throttle position.
3. Engage PTO (B) and allow mower to run for 10 seconds.
4. Disengage PTO and wait 10 seconds.
5. Repeat steps 2 and 3 for 12-15 cycles.
NOTE: PTO clutch is now properly burnished.
|
