Operating - Controls

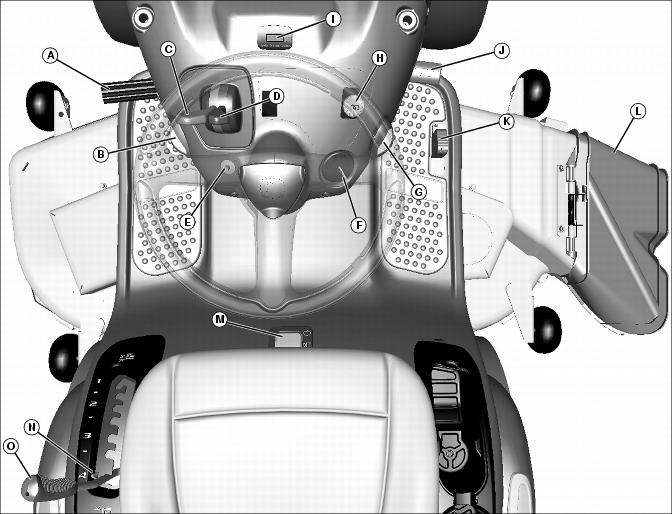

Operator Station Controls (Model 102)
MX16555
A
|
|
B
|
|
C
|
|
D
|
Reverse Implement Option (RIO) Switch
|
E
|
|
F
|
Mechanical Mower Engagement Lever
|
G
|
|
H
|
|
I
|
|
J
|
Mower Deck Height Reminder Tab
|
K
|
|

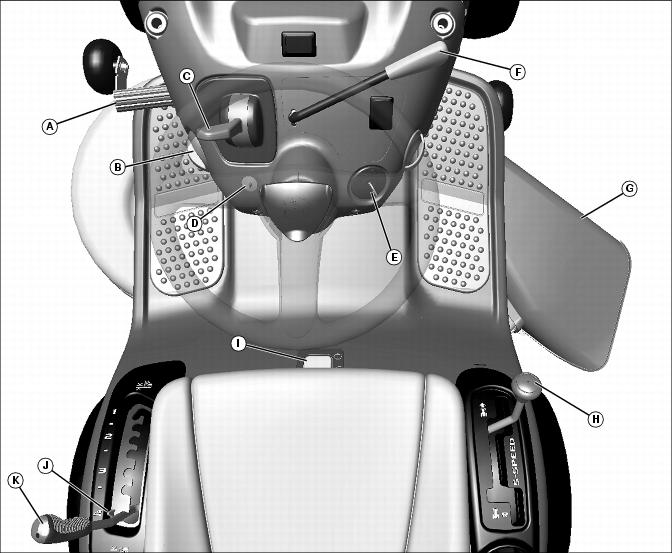

Operator Station Controls (Models 115, 125, 135)
MX16556
A
|
|
B
|
|
C
|
Throttle Lever (Models 125 and 135) (Model 115 has combined throttle/choke lever)
|
D
|
Choke Lever (Models 125 and 135)
|
E
|
Reverse Implement Option (RIO) Switch
|
F
|
|
G
|
Cruise Control Lever (Models 125 and 135)
|
H
|
Service Reminder/Hour Meter (Models 125 and 135)
|
I
|
Attachment Engagement Lever
|
J
|
|
|
|
|
L
|
|
M
|
|
N
|
Mower Deck Height Reminder Tab
|
O
|
|

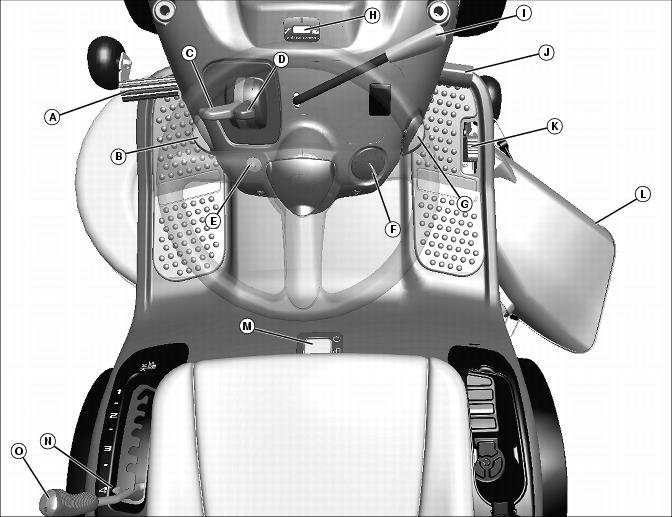

Operator Station Controls (Models 145, 155C, 190C)
MX16557
A
|
Brake Pedal
|
B
|
Park Brake Lock Lever
|
C
|
Throttle Lever
|
D
|
Choke Lever
|
E
|
Reverse Implement Option (RIO) Switch
|
F
|
Key Switch
|
G
|
Cruise Control Lever
|
H
|
Attachment Engagement Switch
|
I
|
Service Reminder/Hour Meter
|
J
|
Forward Travel Pedal
|
K
|
Reverse Travel Pedal
|
L
|
Deflector Shield
|
M
|
Fuel Level Window
|
N
|
Mower Deck Height Reminder Tab
|
O
|
Attachment Lift Lever
|
|
