Assembly

1. Remove mower from shipping carton. Mower shown as removed from shipping carton.

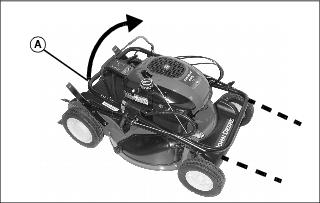

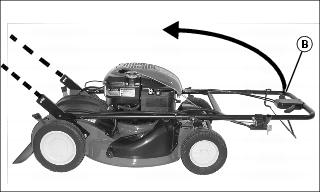

2. Unfold upper handle (A) toward front of machine until upper handle aligns with and fits into lower handle. Securely tighten upper handle knobs on both sides.

NOTE: Carriage bolts, lock washers and knobs may already be installed in brackets. Simply remove and install.

4. Align holes in lower handle with one of three height adjustment holes in mounting brackets. Insert one carriage bolt into desired hole in each bracket, out through lower handle, and secure with lock washer and knob, tightening securely.


c CAUTION: Avoid injury! Mower blades are sharp. Always wear gloves when handling mower blades or working near blades.


IMPORTANT: Avoid damage! Do not tip machine with carburetor or spark plug down. Oil from crankcase will saturate the air filter and cause the engine to be hard to start or not start at all. If filter contamination does occur, the air filter will have to be replaced.

5. Tip mower back against the upper handle to gain access to cutting blade. Remove foam shipping block from cutting blade.

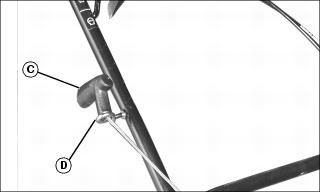

6. While squeezing blade control down against upper handle, slowly pull recoil rope handle (C) up to rope guide (D) located on right side of upper handle as shown, and hook rope through guide.

Charge and Connect Battery


c CAUTION: Avoid injury! The battery produces a flammable and explosive gas. The battery may explode: · Do not smoke or have open flame near battery. · Wear eye protection and gloves. · Never check battery charge by placing a metal object across the posts. Use a voltmeter or hydrometer. · Do not jump start or charge a frozen battery. Warm battery to 16°C (60°F).

1. Remove rear cover from mower. (See Removing and Installing Rear Cover in Service section.)

3. Make sure battery harness is connected to the battery and install rear cover on machine.

Install Discharge Assembly

Your mower comes with a recycling cover installed on the mower deck, and is ready to be operated as a mulching mower. The recycling cover is raised to install the discharge deflector or the grass bag. See the Operating section for information to install the discharge deflector or the grass bag.

Check and Add Engine Oil

1. Remove dipstick and check engine oil level. (See Checking Engine Oil Level in the SERVICE section.)

2. Add the supplied oil as needed up to the FULL mark on the dipstick. Do not overfill.

Insert Fuel Stabilizer Cartridge in Fresh Start Fuel Cap (If Equipped)

Insert the fuel stabilizer cartridge if your machine is equipped with a Fresh Start fuel cap. (See Inserting Fuel Stabilizer Cartridge in Fresh Start Fuel Cap in the SERVICE section.)

Fill Fuel Tank

Check Machine Safety System

Perform safety system check to make sure the blade/engine control lever is functioning properly. (See Testing Safety System in the OPERATING section.)
