Operating Controls

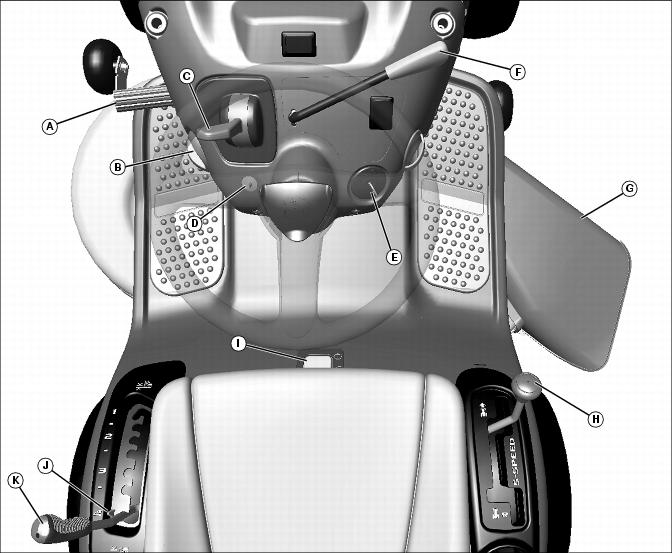

Operator Station Controls (LA100)
MX16555
A
|
Brake/Clutch Pedal
|
B
|
Park Brake Lock Lever
|
C
|
Throttle/Choke Lever
|
D
|
Reverse Implement Option (RIO) Switch
|
E
|
Key Switch
|
F
|
Attachment Engagement Lever
|
G
|
Deflector Shield
|
H
|
Transmission Shift Lever
|
I
|
Fuel Level Window
|
J
|
Mower Deck Height Reminder Tab
|
K
|
Attachment Lift Lever
|

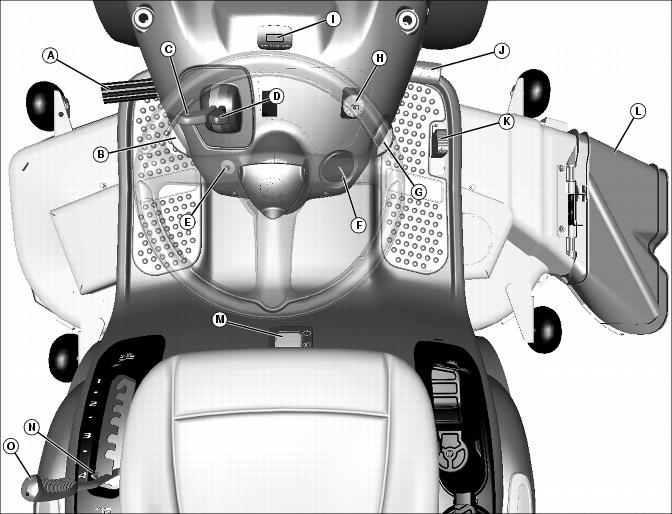

Operator Station Controls (LA110, LA120)
MX16556
A
|
Brake Pedal
|
B
|
Park Brake Lock Lever
|
C
|
Throttle Lever (LA120) (LA110 has combined throttle/choke lever)
|
D
|
Choke Lever (LA120)
|
E
|
Reverse Implement Option (RIO) Switch
|
F
|
Key Switch
|
G
|
Cruise Control Lever (LA120)
|
H
|
Service Reminder/Hour Meter (LA120)
|
I
|
Attachment Engagement Lever
|
J
|
Forward Travel Pedal
|
K
|
Reverse Travel Pedal
|
L
|
Deflector Shield
|
M
|
Fuel Level Window
|
N
|
Mower Deck Height Reminder Tab
|
O
|
Attachment Lift Lever
|

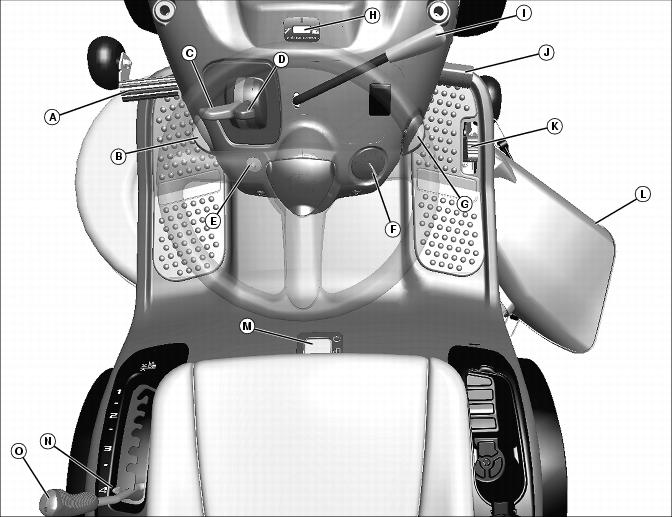

Operator Station Controls (LA130, LA140, LA150)
MX16557
A
|
Brake Pedal
|
B
|
Park Brake Lock Lever
|
C
|
Throttle Lever
|
D
|
Choke Lever
|
E
|
Reverse Implement Option (RIO) Switch
|
F
|
Key Switch
|
G
|
Cruise Control Lever
|
H
|
Attachment Engagement Switch
|
I
|
Service Reminder/Hour Meter
|
J
|
Forward Travel Pedal
|
K
|
Reverse Travel Pedal
|
L
|
Deflector Shield
|
M
|
Fuel Level Window
|
N
|
Mower Deck Height Reminder Tab
|
O
|
Attachment Lift Lever
|
|
