Operating Controls

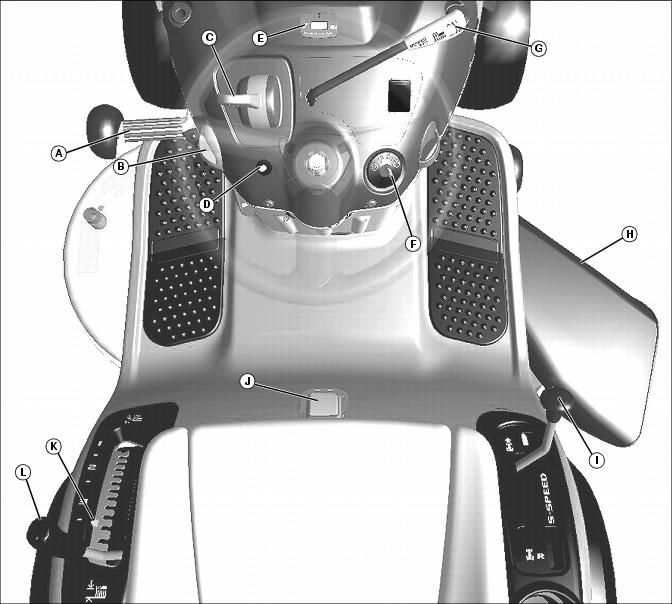

Operator Station Controls (LA105)
MX25896
A
|
Brake/Clutch Pedal
|
B
|
Park Brake Lock Lever
|
C
|
Throttle/Choke Lever
|
D
|
Reverse Implement Option (RIO) Switch
|
E
|
Service Reminder/Hour Meter
|
F
|
Key Switch
|
G
|
Attachment Engagement Lever
|
H
|
Deflector Shield
|
I
|
Transmission Shift Lever
|
J
|
Fuel Level Window
|
K
|
Mower Deck Height Reminder Tab
|
L
|
Attachment Lift Lever
|

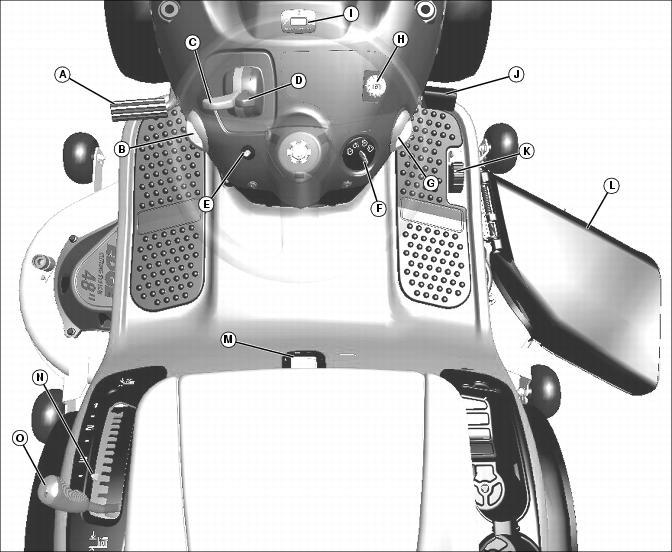

Operator Station Controls (LA115, LA125, LA135)
MX25897
A
|
Brake Pedal
|
B
|
Park Brake Lock Lever
|
C
|
Throttle Lever (LA135) (LA115 and LA125 have combined throttle/choke lever)
|
D
|
Choke Lever (LA135)
|
E
|
Reverse Implement Option (RIO) Switch
|
F
|
Key Switch
|
G
|
Cruise Control Lever (LA125 and LA135)
|
H
|
Service Reminder/Hour Meter
|
I
|
Attachment Engagement Lever
|
J
|
Forward Travel Pedal
|
K
|
Reverse Travel Pedal
|
L
|
Deflector Shield
|
M
|
Fuel Level Window
|
N
|
Mower Deck Height Reminder Tab
|
O
|
Attachment Lift Lever
|

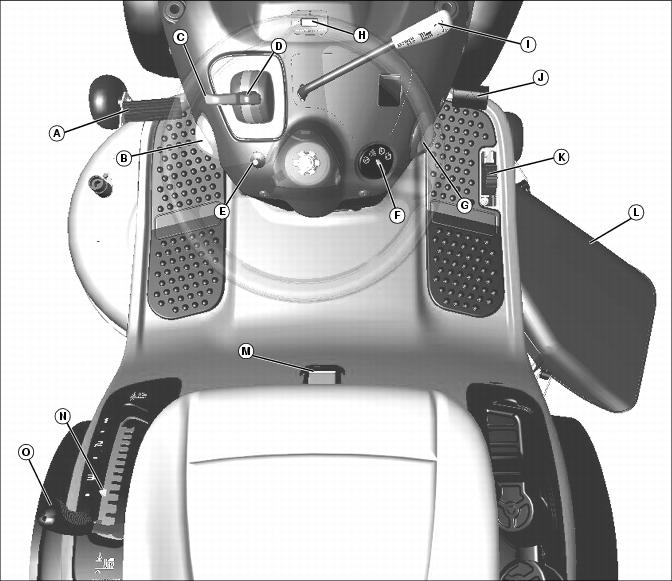

Operator Station Controls (LA145, LA165, LA175)
MX25898
A
|
Brake Pedal
|
B
|
Park Brake Lock Lever
|
C
|
Throttle Lever
|
D
|
Choke Lever
|
E
|
Reverse Implement Option (RIO) Switch
|
F
|
Key Switch
|
G
|
Cruise Control Lever
|
H
|
Attachment Engagement Switch
|
I
|
Service Reminder/Hour Meter
|
J
|
Forward Travel Pedal
|
K
|
Reverse Travel Pedal
|
L
|
Deflector Shield
|
M
|
Fuel Level Window
|
N
|
Mower Deck Height Reminder Tab
|
O
|
Attachment Lift Lever
|
|
