Operating Controls

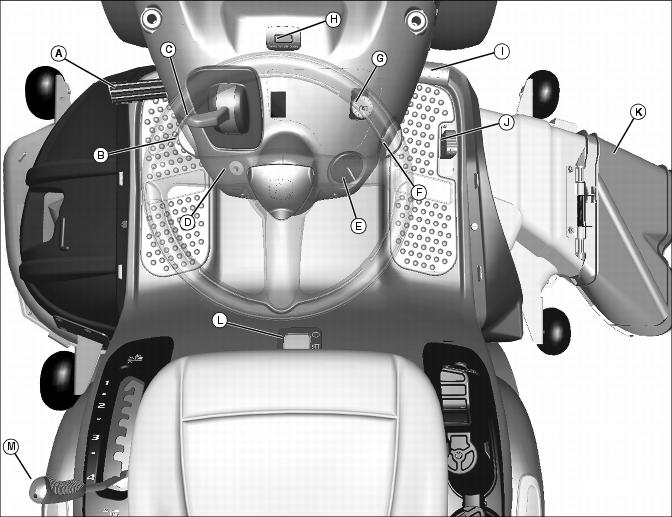

Operator Station Controls (X110, X120)
MX43730
A
|
Brake Pedal
|
B
|
Park Brake Lock Lever
|
C
|
Throttle/Choke Lever
|
D
|
Reverse Implement Option (RIO) Switch
|
E
|
Key Switch
|
F
|
Cruise Control Lever (X120)
|
G
|
Service Reminder/Hour Meter (X120)
|
H
|
Attachment Engagement Lever
|
I
|
Forward Travel Pedal
|
J
|
Reverse Travel Pedal
|
K
|
Deflector Shield
|
L
|
Fuel Level Window
|
M
|
Attachment Lift Lever
|

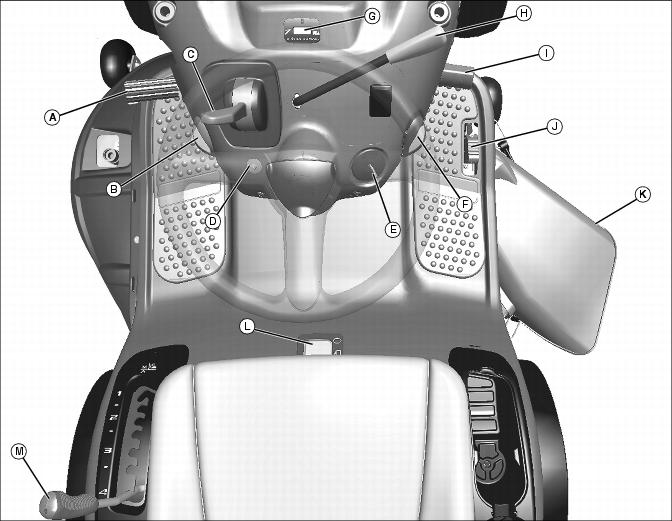

Operator Station Controls (X140)
MX43731
A
|
Brake Pedal
|
B
|
Park Brake Lock Lever
|
C
|
Throttle/Choke Lever
|
D
|
Reverse Implement Option (RIO) Switch
|
E
|
Key Switch
|
F
|
Cruise Control Lever
|
G
|
Attachment Engagement Switch
|
H
|
Service Reminder/Hour Meter
|
I
|
Forward Travel Pedal
|
J
|
Reverse Travel Pedal
|
K
|
Deflector Shield
|
L
|
Fuel Level Window
|
M
|
Attachment Lift Lever
|
|
