Operating


Daily Operating Checklist

o Test safety systems.

o Make sure all guards, deflectors and covers are in place and tightened.

o Check engine oil level.

o Check fuel level.

o Check fuel stabilizer cartridge in fuel cap.

o Check that handle knobs are tight.

o Check for proper cutting height.

o Remove grass and debris from machine.

o Check area below machine for leaks.

Adjusting Cutting Height

c CAUTION: Avoid injury! Rotating blades are dangerous and can cut fingers and toes. Stop engine and wait for blade to stop rotating before adjusting cutting height.

JS26 model is front wheel drive, with separate wheel adjustment levers on each front wheel, and a single adjustment lever for rear wheels.

JS36 and JS46 models are rear wheel drive with a single height adjustment lever at the right rear wheel.

Key

Cutting Height Adjustments

(A)

30 mm (1.2 in.)

(B)

38 mm (1.5 in.)

(C)

48 mm (1.9 in.)

(D)

56 mm (2.2 in.)

(E)

66 mm (2.6 in.)

(F)

76 mm (3.0 in.)

(G)

86 mm (3.4 in.)

(H)

97 mm (3.8 in.)

(I)

107 mm (4.2 in.)


JS26

A single height adjustment lever at the right rear wheel raises or lowers the rear of the mower deck equally and simultaneously. Each front wheel has a height adjustment lever than raises and lowers the wheel individually.


MX27680

Picture Note: Right side shown.

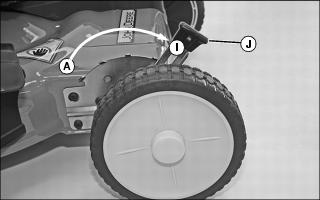

1. Pull the height adjusting lever (J) outward and move to the desired cutting height. The lowest cutting height is location (A). The highest cutting height is location (I).

NOTE: Front wheels heights are adjusted individually. The front height of cut levers can be set over the bent tabs and between them to obtain all nine positions. Both wheels should be set in the same position to ensure even grass cutting.

NOTE: the front height of cut levers can be set over the bent tabs and between them to obtain all nine positions


MX27679

Picture Note: Right side shown.

2. Pull the height adjusting lever (J) on each front wheel outward and move to the desired cutting height. The lowest cutting height is location (A). The highest cutting height is location (I).

JS36, JS46

A single height adjustment lever at the right rear wheel is connected to linkage which raises or lowers the mower deck equally at all four wheels simultaneously.


MX27682

Picture Note: Right side shown.


MX27681

Picture Note: Left side shown.

1. Pull the height adjusting lever (J) outward and move to the desired cutting height. The lowest cutting height is location (A). The highest cutting height is location (I).

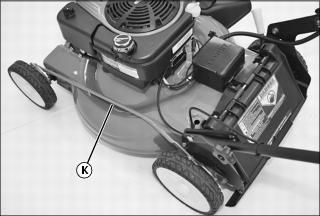

2. Linkage (K) raises and lowers the four wheels simultaneously.

Adjusting Handle Height


MX27683

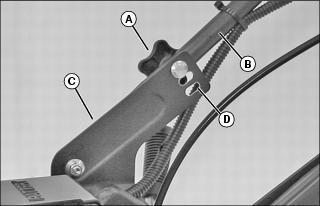

1. Remove plastic knob (A), lock washer and carriage bolt securing lower handle (B) to mower deck bracket (C) at each side of mower deck. For first time set-up remove knob, washer and carriage bolt from pre-assembly position in mower deck brackets.

2. Align hole on each side of lower handle with one of three height adjustment holes (D) in mounting brackets.

• Top hole in mounting bracket will be highest handle position.

3. Install carriage bolt outward through hole in each mounting bracket and then through handle. Install lock washers, knobs and tighten to secure.

Testing Safety Systems



c CAUTION: Avoid injury! Engine exhaust fumes contain carbon monoxide and can cause serious illness or death.

Do not run an engine in an enclosed area, such as a garage, even with doors or windows opened.

Move the machine to an outside area before running the engine.

The safety systems installed on your machine should be checked before each machine use. Be sure you have read the machine operator manual and are completely familiar with the operation of the machine before performing these safety system checks.

Use the following checkout procedures to check for normal operation of machine.

If there is a malfunction during one of these procedures, do not operate machine. See your authorized dealer for service.

Perform these tests in a clear open area. Keep bystanders away.

Testing Operator Presence Control

1. Hold the operator presence control against the drive handle.

2. Start engine.

3. Release operator presence control.

c CAUTION: Avoid injury! Rotating blades are dangerous. Do not look under mower or put hands under mower to view blade rotation. Listen for blades to stop.

4. Listen for blade and engine to stop. Do not look under mower to check blade.

Result: Blade and engine should stop within three seconds.

If blade and engine continue to run, there is a problem with your machine safety system. See your John Deere dealer.

Starting and Stopping Engine

c CAUTION: Avoid injury! Engine exhaust fumes contain carbon monoxide and can cause serious illness or death.

Do not run an engine in an enclosed area, such as a garage, even with doors or windows opened.

Move the machine to an outside area before running the engine.

Starting Engine-Manual Pull Start


MX27686

Picture Note: Model JS46 with electric start shown.

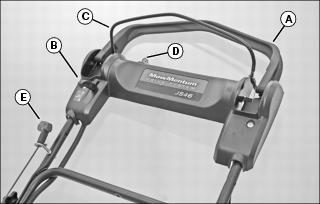

1. Pivot the drive handle (A) all the way back.

2. Move the neutral lock (B) forward to LOCK.

3. Hold the operator presence control (C) against the drive handle.

c CAUTION: Avoid injury! Rapid retraction of starter cord, or kickback, can pull hand and arm toward engine faster than you can let go.

Broken bones or other injuries can result.

Pull starter cord slowly until resistance is felt, then pull rapidly to start engine.

4. Pull starter handle (D) slowly until resistance is felt, then pull fast and steady until the engine starts.

NOTE: After engine has started, continue to hold operator presence control against drive handle or blade and engine will stop.

5. When engine starts, return rope slowly until starter handle is in bracket.

6. Move neutral lock back to UNLOCK and pivot the drive handle forward to engage drive system.

Starting Engine-Electric Start


MX27686

Picture Note: Model JS46 with electric start shown.

1. Pivot the drive handle (A) all the way back.

2. Move the neutral lock (B) forward to LOCK.

3. Hold the operator presence control (C) against the drive handle.

NOTE: After engine has started, continue to hold operator presence control against drive handle or blade and engine will stop.

4. Insert key (D) into ignition switch. Turn and hold ignition key until the mower starts, but never longer than five seconds.

5. If engine does not start, use pull start (E) or charge the battery.

6. Move neutral lock back to UNLOCK and pivot the drive handle forward to engage drive system.

Stopping Engine

1. Release operator presence control (C).

Operating the Mower

NOTE: After the engine has been started, the operator presence control bar must be held against the drive handle to keep the engine running.

1. Start the engine, hold the operator presence control bar against the drive handle.

2. Move the drive handle forward to engage the drive or increase speed.

3. Move the drive handle back to decrease speed or stop.

4. Release the operator presence control bar to stop the engine and blade.

Emergency Stopping


MX27691

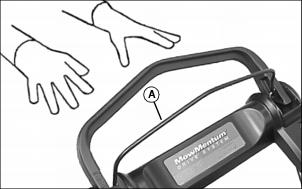

Release operator presence control (A) fully:

• Mower will stop.

• Blade will stop.

• Engine will stop.

Using Neutral Lock

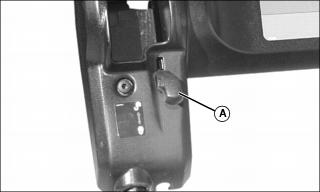

MX27733

Picture Note: Shown in locked position.

When engaged, the neutral lock prevents the drive handle from moving forward and engaging the drive unit.

Use the neutral lock to lock the drive handle in a stationary position for starting and transporting the machine or operating in a push mode. The neutral lock should not be used to lock the drive handle in the forward position.

To engage the neutral lock, pull the drive handle all the way back, and push the neutral lock (A) fully forward. This will prevent the drive handle from moving forward and unexpectedly engaging the drive unit.

To disengage the neutral lock, simply pull the lever fully backward. This will allow the drive handle to operate normally.

Installing Side Discharge Deflector

c CAUTION: Avoid injury! Rotating blades can throw objects and debris:

• Do not mow without discharge chute or grass catcher, or approved mulch plug or guard, in place.

• Stop engine before removing or installing discharge chute or grass catcher, or approved mulch plug or guard.

1. Stop engine.


MX27688

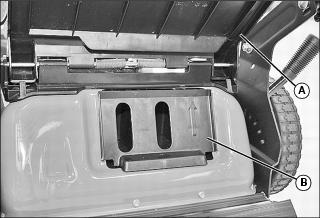

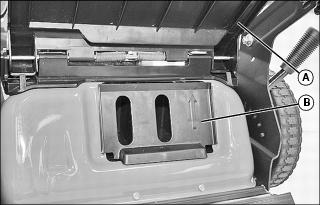

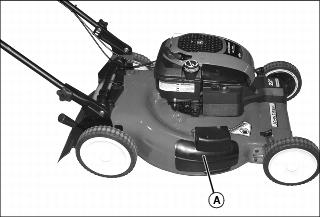

2. Lift the spring-loaded rear door (A) to access rear discharge area. If not already installed, install mulch plug (B) with imprinted arrow pointing upward as shown.


MX27689

3. Raise and hold side discharge cover (C).

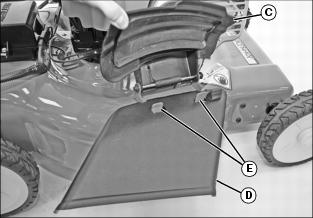

4. Install discharge deflector (D) on two vertical flanges (E) on the mower deck.

5. Lower side discharge cover and allow it to rest against side discharge deflector. The spring tension on the side discharge cover will secure the side discharge deflector in place.

Installing Grass Bag

c CAUTION: Avoid injury! Rotating blades can throw objects and debris:

• Do not mow without discharge chute or grass catcher, or approved mulch plug or guard, in place.

• Stop engine before removing or installing discharge chute or grass catcher, or approved mulch plug or guard.

1. Stop engine.


MX27688

2. LIft the spring-loaded rear cover (A) to access the mulch plug.

3. Remove mulch plug (B) from mower.

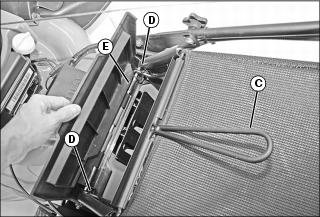

MX27690

4. Grasp the wire form handle (C) at the top of the grass bag and position the grass bag at the back of the mower housing so that the two hooks (D) on the grass bag frame hook over the rear door pivot shaft (E).

5. Lower the spring-loaded rear door to rest on the grass bag.

6. Store the mulch plug for future use.

Using the Mower for Mulching

1. Install mulch plug.


MX44281

2. Make sure side discharge cover (A) is closed.

3. Adjust cutting height to remove only 1/3 of the grass at a time.

4. Raise cutting height, if grass clumping occurs.
