Operating

Adjusting Operator Seat

Front-to-Back Adjustment

MX17784

1. Remove four cap screws (A) and lockwashers holding seat to plate.

2. Install seat in one of four positions. Be sure operator can reach controls.

3. Install lockwashers and cap screws.

Height Adjustment

MX17780

1. Remove four bolts (A).

2. Raise or lower seat bracket (B).

3. Install bolts, lockwashers and nuts.

Using Controls

c CAUTION: Avoid injury! Do not use control levers to help you mount or dismount the backhoe. Always use hand rail. Do not operate controls while standing on the ground. Backhoe movements could strike and/or crush you against frame.

MX15449

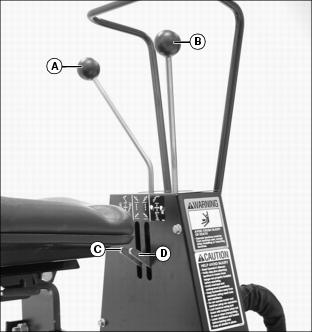

Boom And Swing Control Lever (A):

• To raise boom: pull lever to rear.

• To lower boom: push lever forward.

• To swing boom to left: push lever to left.

• To swing boom to right: push lever to right.

Dipperstick And Bucket Control Lever (B):

• To retract dipperstick: pull control lever to rear.

• To extend dipperstick: push control lever forward.

• To curl bucket in: push lever to left.

• To roll bucket out: push lever to right.

Stabilizers Control Levers; Left (C), and Right (D):

• To raise stabilizer: pull control lever up.

• To lower stabilizer: push control lever down.

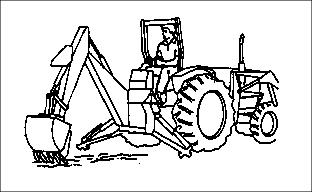

Digging Safely

TY1226

c CAUTION: Avoid injury! To dig safely:

• Sit in backhoe seat.

• Lower stabilizers to ground.

• Keep loader bucket low or on ground.

Operating Tractor


IMPORTANT: Avoid damage! Always check tractor hydraulic fluid level before operating backhoe.

Operate tractor engine at the proper speed to reduce hydraulic system heat buildup in hot conditions.

• Operate engine at the following maximum speeds when using backhoe in hot conditions:

Gear Drive Tractor...........................................2400 rpm

Hydrostatic Drive Tractor.................................2700 rpm

Faster engine speeds result in faster backhoe movement. When operating where precise movements of the backhoe are required, slow the engine to slow backhoe movement.

Digging forces and breakout forces are functions of hydraulic pressure only, and are the same at any digging rpm.

Removing Boom And Swing Lock Pins

MX15447

Picture Note: Model 46 shown.

1. Remove boom lock pin (A).

2. Remove swing lock pin (B).

MX15450

Picture Note: Model 46 shown.

3. Store pins in storage holes (C) on floor of operator’s station while operating backhoe.

Digging Position

c CAUTION: Avoid injury! Avoid serious injury or death: Check for buried electric cables or gas pipes before you dig.


IMPORTANT: Avoid damage! To help prevent damage to backhoe: • Raise tractor only with stabilizers. • Do not let backhoe bucket contact stabilizers.

TY1226a

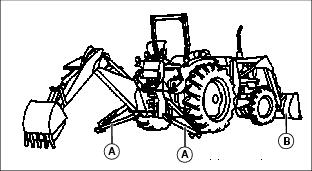

1. Lower backhoe stabilizers (A), and loader bucket (B) to ground.

2. Set throttle to 1400–2400 rpm on gear tractor, 1400-2700 rpm hydrostatic tractor.

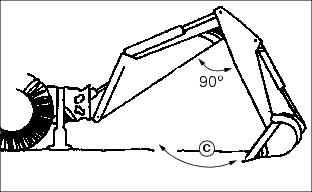

Digging Angle

TY10107

1. Put dipperstick at correct angle to boom for digging, approximately 90 degrees.

2. Put bucket teeth in-line with crowd angle (C).

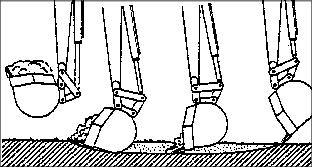

Bucket Digging

M61256

1. Lower bucket to ground.

2. Retract dipperstick and curl bucket until full.

3. Raise bucket, swing, and dump onto spoil pile.

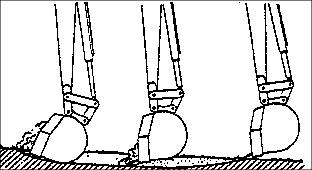

Dipperstick Digging

M61257

1. Lower bucket until teeth lie flat on ground.

2. Retract dipperstick until bucket is half full.

3. Retract dipperstick as you roll bucket back.

4. When bucket is full, raise, swing, and dump onto spoil pile.

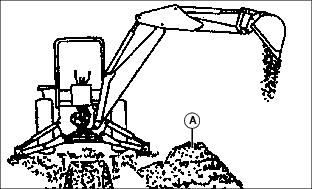

Spoil Pile Location

TY10108

Put spoil pile (A) where minimum effort is needed to back fill.

Spoil pile should be a minimum of 0,6m (2 ft) from hole.

Lifting With Backhoe


IMPORTANT: Avoid damage! Do not use backhoe as towing vehicle. Damage to backhoe and tractor could occur.

c CAUTION: Avoid injury! Improper lifting may cause crushing, injury or death. To lift safely:

• Fasten chains to object and backhoe.

• Avoid jerking or swinging boom.

• Keep people away:

• Do not let anyone under object.

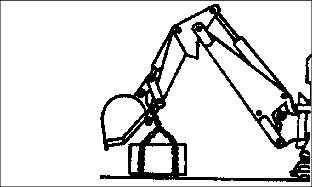

1. Extend boom and dipperstick until you can fasten chain to object.

TY10142

TY10143

TY10144

2. Fasten chain to dipperstick approximately 50 mm (2 in.) above bucket pin.

3. Fasten chain to object.

4. Raise boom to full height. Extend dipperstick cylinder if needed.

5. Retract dipperstick cylinder to lift load.

Transporting Backhoe

c CAUTION: Avoid injury! To help prevent injury while transporting backhoe:

• Look for people or obstacles BEFORE you change directions.

• LOCK backhoe in TRANSPORT position. See steps below.

• Keep as far to right as possible on roads.

• Go slow: Use safe travel speed.
