Specifications

Backhoes


M64109

Model 47

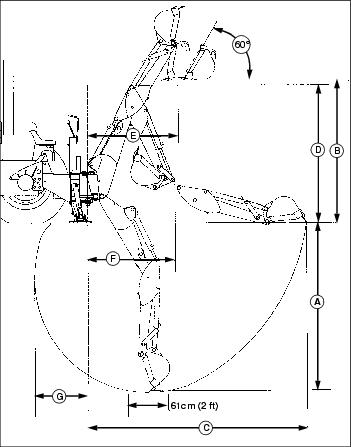

NOTE: Dimensions are given for backhoe with boom pivot pin 36cm (14 in.) above ground.

Digging Depth (A) (see note below) 2,29m (90 in.)

Weight 460kg (1013 lb)

Swing Arc 180 degrees

Loading Height (bucket at 60°) (B) 1,8m (70 in.)

Reach From Center Line of Swing Pivot (C) 2,9m (114 in.)

Transport Height (D) 1,8m (69 in.)

Bucket Rotation 180 degrees

Loading Reach (bucket at 60°) (E) 1,09m (43 in.)

Transport Overhang (F) 1,07m (42 in.)

Undercut (G) 76cm (30 in.)

Stabilizers Spread Width (Raised) 1,55m (61 in.)

Stabilizers Spread Width (Lowered) 2,26m (89 in.)

Boom Lift Capacity (see note below) 245kg (540 lb)

SAE Dipperstick Digging Force 8,92kN (2005 lb)

SAE Bucket Digging Force 12,63kN (2840 lb)

Bucket Control Main Relief Valve Pressure 15,51mPa (2250 psi)

Digging Depth: 61cm (24 in.) flat bottom.

Boom Lift Capacity: Dipper arm and boom extended, lifting with boom cylinder only, weight attached at bucket pivot, bucket pivot 91cm (36 in.) above ground.

Model 48

NOTE: Dimensions are given for backhoe with boom pivot pin 41cm (16 in.) above ground.

Digging Depth (A) (see note below) 2,59m (102 in.)

Weight With Large Frame Adapter 1517kg (690 lb)

Weight With Medium Frame Adapter 1477kg (671 lb)

Swing Arc 180 degrees

Loading Height (bucket at 60°) (B) 2,08m (82 in.)

Reach From Center Line of Swing Pivot (C) 3,38m (133 in.)

Transport Height (D) 2,1m (81 in.)

Bucket Rotation 180 degrees

Loading Reach (bucket at 60°) (E) 1,09cm (43 in.)

Transport Overhang (F) 1,22m (48 in.)

Undercut (G) 86cm (34 in.)

Stabilizers Spread Width (Raised) 1,37m (54 in.)

Stabilizers Spread Width (Lowered) 2,51m (99 in.)

Boom Lift Capacity (see note below) 345kg (760 lb)

SAE Dipperstick Digging Force 10,83kN (2435 lb)

SAE Bucket Digging Force 16,59kN (3730 lb)

Bucket Control Main Relief Valve Pressure 17,58mPa (2550 psi)

Digging Depth: 61cm (24 in.) flat bottom.

Boom Lift Capacity: Dipper arm and boom extended, lifting with boom cylinder only, weight attached at bucket pivot, bucket pivot 91cm (36 in.) above ground.

Buckets

Model 46, 47

NOTE: 91cm (36 in.) bucket not for use on backhoe model 46.

Bucket Width

23cm
(9 in.)

33cm
(13 in.)

41cm
(16 in.)

51cm
(20 in.)

61cm
(24 in.)

91cm
(36 in.)

SAE Struck Capacity

0.014 m3 (0.49 ft3)

0.022 m3
(0.77 ft3)

0.028 m3
(0.98 ft3)

0.036 m3
(1.26 ft3)

0.044 m3
(1.54 ft3)

0.067 m3
(2.38 ft3)

Heaped Capacity

0.018 m3
(0.64 ft3)

0.029 m3
(1.04 ft3)

0.038 m3
(1.33 ft3)

0.049 m3
(1.74 ft3)

0.061 m3
(2.14 ft3)

0.095 m3
(3.34 ft3)


Model 48

Bucket Width

31cm
(12 in.)

46cm
(18 in.)

61cm
(24 in.)

91cm
(36 in.)

SAE Struck Capacity

0.034 m3 (1.20 ft3)

0.052 m3
(1.84 ft3)

0.072 m3
(2.53 ft3)

0.111 m3
(3.92 ft3)

Heaped Capacity

0.043 m3
(1.53 ft3)

0.070 m3
(2.47 ft3)

0.099 m3
(3.48 ft3)

0.156 m3
(5.50 ft3)


(Specifications and design subject to change without notice.)
