Service Lubrication

Grease

IMPORTANT: Avoid damage! Use recommended John Deere greases to avoid component failure and premature wear.

The recommended John Deere greases are effective within an average air temperature range of -29 to 135 degrees C (-20 to 275 degrees F).

If operating outside that temperature range, contact your Servicing dealer for a special-use grease.


The following greases are preferred:

· John Deere Multi-Purpose SD Polyurea Grease

· John Deere Multi-Purpose HD Lithium Complex Grease

· John Deere Moly High Temperature EP Grease

If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.

Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

NOTE: Wash but do not lubricate gear shift lever bushing (A) if shifting becomes difficult.


MX10772

Lubricating Machine Grease Fittings

· Extremely Wet and Muddy Conditions - Lubricate machine grease fittings every 10 hours of operation or on a daily basis
· All Other Conditions - Lubricate machine grease fittings every 50 hours of operation

All Models

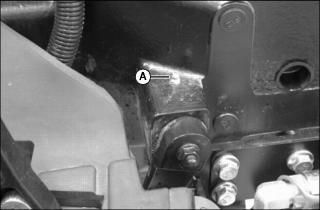

MX10710

Picture Note: eHydro Model Shown

A - Brake Pivot Tube-Left Side

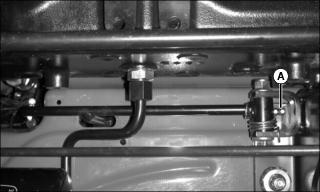

MX10715

Picture Note: eHydro Model Shown

A - Brake Pedal Tube-Right Side

2WD Model Machines

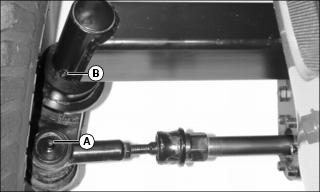

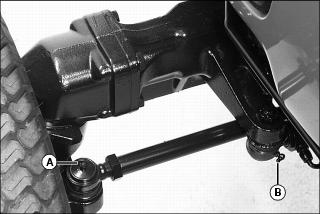

MX10746

A - Left Tie Rod End

B - King Pin

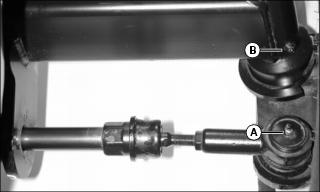

MX10744

A - Right Tie Rod End

B - King Pin

MFWD Model Machines

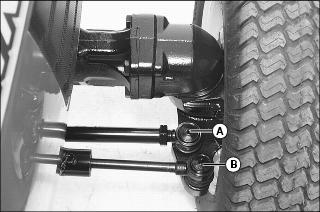

MX4820

A - Left Tie Rod End

B - Left Steering Cylinder Ball Joint

MX4821

A - Right Tie Rod End

B - Right Steering Cylinder Ball Joint

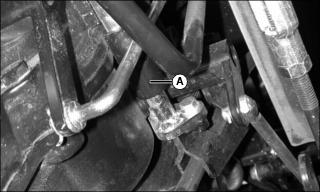

Gear Models

MX10727

A - Foot Throttle Linkage

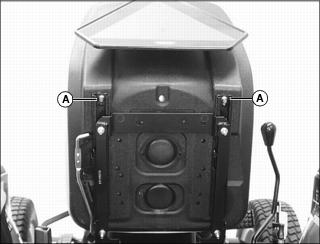

Lubricating Seat Slide Rails

1. Tip operator seat forward.


MX4824

2. Lubricate seat slide rails (A) with clean engine oil.

3. Lower seat.

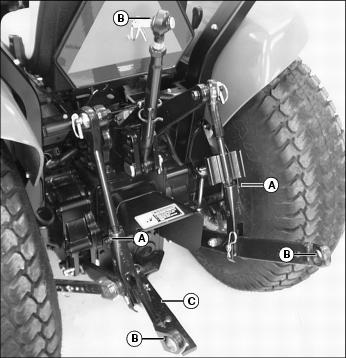

Lubricating 3-Point Hitch


MX5204

· Lubricate lift link grease fittings (A) with a preferred John Deere grease or an equivalent.

· Lubricate ball joints (B) and draw bar (C) with clean engine oil.
