Service Steering & Brakes

Adjusting Brake (Pedals)

MX32697

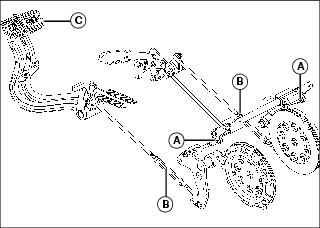

1. Disconnect park brake linkages at park brake cross shaft bellcrank (A).

2. Loosen jam nuts on brake linkage and adjust turnbuckle (B) so there is about 22 - 30 mm (0.87 - 1.2 in.) of free play at the pedals (C).

3. Check to be sure free play is about the same for both pedals.

4. Be sure pedal travel is not excessive enough to allow pedal stems to easily contact the footdeck cutouts.

5. Tighten jam nuts to lock in place.

6. Adjust and connect park brake linkages.

Adjusting Park Brake

MX32697

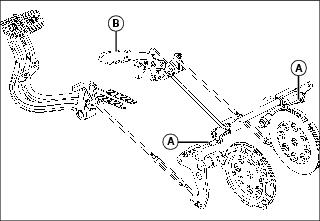

1. With the brake (pedals) properly adjusted (but not actuated), adjust each clevis (A) of the park brake linkage so there is no free play in the linkages.

2. The park brake lever (B) should begin to lock at 6 - 8 clicks of lever travel, and the brakes should be fully locked at 10 - 12 clicks.
