Safety Labels
Understanding The Machine Safety Labels
The machine safety labels shown in this section are placed in important areas on your machine to draw attention to potential safety hazards.
On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with this safety-alert symbol. DANGER identifies the most serious hazards.
The operator's manual also explains any potential safety hazards whenever necessary in special safety messages that are identified with the word, CAUTION, and the safety-alert symbol.

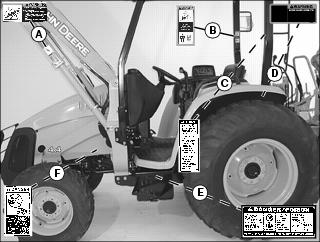

Safety Labels
WARNING (A)
Always install boom lock before working on or around this machine with the loader boom raised.
· Empty loader bucket and place in dump position, raise boom until boom lock channel can be positioned on cylinder rod, then stop engine.
· Pull pin and lower lock onto cylinder rod.
· Slowly lower boom until lock stops travel.
WARNING (B)
CAUTION (C)
· AVOID DEATH OR SERIOUS INJURY-Read and understand Operator's Manual before operating this machine.
· Before leaving seat: Lower working tools to ground, place in neutral and engage parking brake.
· Engage backhoe boom and swing locks before transporting.
· Avoid contact with overhead obstacles when operating or hauling machine.
WARNING (D)
· Keep hands, feet and clothing away.
DANGER/POISON (E)
NOTE: Picture note: Remove spring locking pins and battery box step plate to locate safety label.
SHIELD EYES: EXPLOSIVE GASES CAN CAUSE BLINDNESS OR INJURY.
SULFURIC ACID CAN CAUSE BLINDNESS OR SEVERE BURNS.
FLUSH EYES IMMEDIATELY WITH WATER. GET MEDICAL HELP FAST.
KEEP OUT OF THE REACH OF CHILDREN. DO NOT TIP. KEEP VENT CAPS TIGHT AND LEVEL.
DANGER (F)
NOTE: Picture note: Remove left side panel to locate safety label on starter.
Start only from seat in park or neutral.

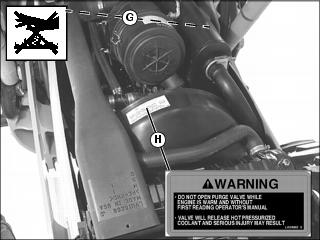

CAUTION: HOT SURFACE (G)
NOTE: Picture note: No-text warning molded into muffler.
Do not touch engine muffler, it may be hot.
WARNING (H)
DO NOT OPEN PURGE VALVE WHILE ENGINE IS WARM AND WITHOUT FIRST READING OPERATOR'S MANUAL
VALVE WILL RELEASE HOT PRESSURIZED COOLANT AND SERIOUS INJURY MAY RESULT

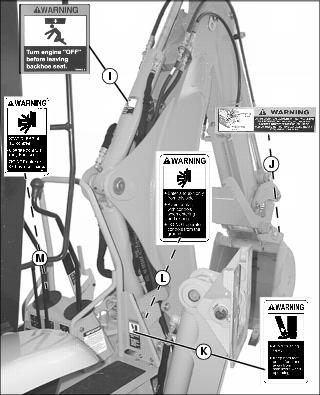

WARNING (I)
Turn engine "OFF" before leaving backhoe seat.
WARNING (J)
NOTE: Picture note: Label installed on quick attach system wedge bar.
DO NOT OPERATE ATTACHMENT WITHOUT WEDGE BAR BOLT TIGHTENED TO (100 ft. lbs.) AND LYNCH PINS INSERTED INTO WEDGE BAR PINS. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY IF ATTACHMENT COMES OFF.
WARNING (K)
· Keep both feet on platform and away from stabilizers when operating.
WARNING (L)
· Enter and exit only from this side.
· Avoid contact with controls when entering and exiting.
· DO NOT operate controls from the ground.
WARNING (M)
Operate controls only from seat.
DO NOT enter or exit from this side.
Picture Note: Label installed on multi-purpose bucket only.

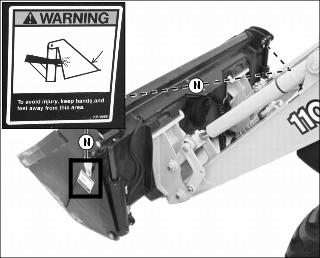

WARNING (N)
To avoid injury, keep hands and feet away from this area.
Emission Control System Certification Label
c CAUTION: Avoid injury! Statutes providing severe penalties for tampering with emissions controls may apply at the user's location.
|
The emissions warranty described in the warranty section applies only to those engines marketed by John Deere that have been certified by the United States Environmental Protection Agency (EPA) and/or California Air Resources Board (CARB); and used in the United States in non-road mobile (self-propelled or portable/transportable1) equipment. The presence of an emissions label like the one shown signifies that the engine has been certified with the EPA and/or CARB. The EPA and CARB warranties only apply to new engines having the certification label affixed to the engine and sold as stated above in the geographic areas governed by the regulating agencies.
NOTE: The hp/kW rating on the engine emissions certification label specifies the gross engine hp/kW, which is flywheel power without fan. In most applications this will not be the same rating as the advertised vehicle hp/kW rating.
