Removing and Storing

Preparing Backhoe for Removal

c CAUTION: Avoid injury! Keep people away from tractor while removing backhoe. Run engine just above slow idle to keep tractor movements slow and controllable.

1. Park tractor safely.

MX32484

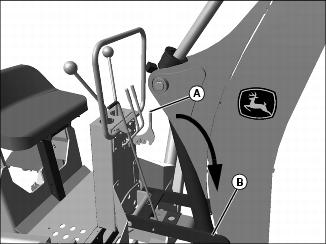

2. Raise boom to highest position, center boom and swing, and pull latch handle (A) towards operator, lowering locking device (B) onto pin on boom.

3. Retract dipperstick to full back position.

MX32483

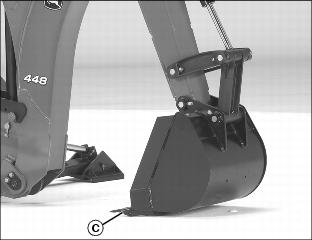

4. Rotate bucket until bucket cutting edge (C) is parallel with ground.

5. Fully raise both stabilizers.

6. Stop engine.

7. Cycle boom control lever to relieve backhoe system pressure and allow boom to come to rest on boom lock pin.

8. Remove hitch pins from L-pins. Do not remove L-pins.

9. Flip up backhoe seat.

Disconnecting Hydraulic Hoses

c CAUTION: Avoid injury! Before removing hydraulic hoses, be sure locking device has been installed. Cycle boom control lever to relieve backhoe system pressure before attempting to remove quick disconnect couplers.

1. Disconnect backhoe hoses from tractor Power Beyond.

2. Install dust caps on hoses and store hoses out of way on backhoe.

MX17785

Picture Note: Large Chassis Tractor

MX17786

Picture Note: Mid Chassis Tractor

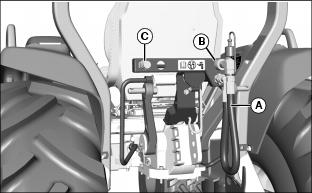

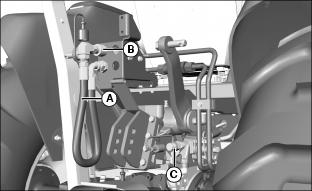

3. Connect Power Beyond hose (A) to female coupler (B). Install dust cap on fitting (C).

Removing Backhoe

1. Start engine and run at slow idle.

2. Pull rockshaft position control lever rearward to lift rockshaft arms.

MX32498

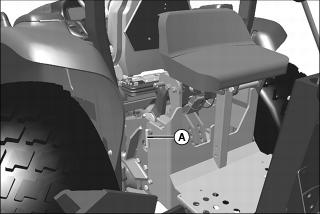

3. Pull L-pins (A) from backhoe.

4. Push rockshaft position control lever forward to lower backhoe to ground.

MX32500

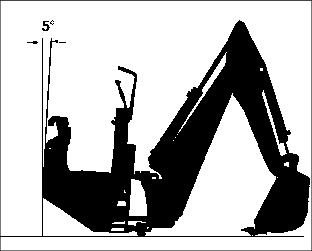

5. To aid removal, position backhoe on ground as shown, leaning away from tractor about 5°, and resting on bucket and boom pivot pin.

6. Be sure hoses are clear of pinch points.

7. Slowly move tractor forward and back until rock shaft pins clear hooks on backhoe.

Removing Slow Moving Vehicle (SMV) Sign

MX15437a

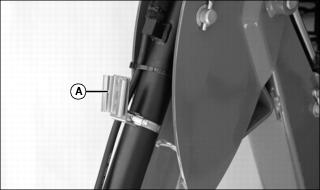

1. Remove SMV sign from the backhoe bucket cylinder bracket (A).

2. Retain sign for later installation on backhoe.

Storing

1. Position boards under bucket and backhoe frame to prevent corrosion.

2. Keep drain holes in bucket clear and positioned at bottom.

3. Store backhoe in clean, dry place.

4. Raise seat to vertical position.

5. Keep hydraulic hoses off ground and not kinked.

6. Install dust covers on ends of hydraulic hoses.

7. Clean backhoe with water pressure.

8. Paint worn or scratched areas.

9. Lubricate all grease points.

10. Keep boom lock pin and swing lock pin in locked position.

11. Coat exposed cylinder rods and hooks on backhoe with thin film of grease.

12. Put waterproof cover over backhoe if stored outside.
