Safety Labels
Understanding The Machine Safety Labels
The machine safety labels shown in this section are placed in important areas on your machine to draw attention to potential safety hazards.
On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with this safety-alert symbol. DANGER identifies the most serious hazards.
The operator's manual also explains any potential safety hazards whenever necessary in special safety messages that are identified with the word, CAUTION, and the safety-alert symbol.
Safety Labels

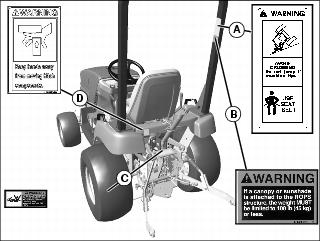

WARNING: AVOID CRUSHING (A)
CAUTION (B)
If a canopy or sunshade is attached to the ROPS structure, the weight MUST be limited to 100 lb (45 kg) or less.
WARNING: AVOID INJURY FROM PTO (C)
· Keep hands, feet and clothing away.
WARNING: KEEP HANDS AWAY FROM MOVING HITCH COMPONENTS (D)
KEEP HANDS AWAY FROM MOVING HITCH COMPONENTS.

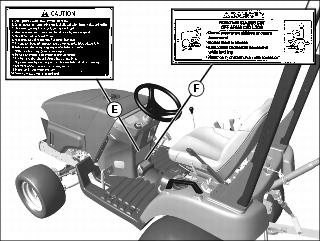

CAUTION (E)
1. Read Operator's Manual before operating this tractor.
2. Do not operate the machine without guards, shields, and safety devices in place and working.
3. Hitch towed loads only to drawbar to avoid rearward upset.
4. Make certain everyone is clear of machine before starting engine or operation.
5. Keep all riders off tractor and equipment.
6. Keep hands, feet and clothing away from power-driven parts.
7. Use seat belt. Extend belt completely from any wind-up device before adjusting to fit.
8. Reduce speed when turning or applying individual brakes or operating around hazards, on rough ground or steep slopes.
9. Do not allow operation of the machine by untrained personnel.
10. Use flashing warning lights on highway unless prohibited by law.
11. Stop engine, lower implement to ground, and lock park brake before dismounting.
12. Wait for all movement to stop before servicing machinery.
13. Remove key if leaving tractor unattended.
14. Couple brake pedals together for road travel.
DANGER: ROTATING BLADES CUT OFF ARMS AND LEGS (F)
· Do not mow when children or others are around
· Look down and behind before and while backing
· Never carry children even with blades off
Picture Note: No-text warning molded into muffler.

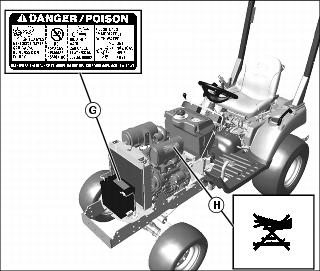

DANGER/POISON (G)
SHIELD EYES: EXPLOSIVE GASES CAN CAUSE BLINDNESS OR INJURY.
SULFURIC ACID CAN CAUSE BLINDNESS OR SEVERE BURNS.
FLUSH EYES IMMEDIATELY WITH WATER. GET MEDICAL ATTENTION FAST.
KEEP OUT OF REACH OF CHILDREN. DO NOT TIP. DO NOT OPEN BATTERY.
CAUTION: HOT SURFACE (H)
Do not touch engine muffler, it may be very hot.
Picture Note: Optional iMatch quick-attach hitch.
CAUTION (H)
BEFORE USING, SECURE TRACTOR IMPLEMENT WITH BOTH LOCKING LUGS OVER LOWER IMPLEMENT PINS
Emission Control System Certification Label
c CAUTION: Avoid injury! Statutes providing severe penalties for tampering with emissions controls may apply at the user's location.
|
The emissions warranty described in the warranty section applies only to those engines marketed by John Deere that have been certified by the United States Environmental Protection Agency (EPA) and/or California Air Resources Board (CARB); and used in the United States in non-road mobile (self-propelled or portable/transportable1) equipment. The presence of an emissions label like the one shown signifies that the engine has been certified with the EPA and/or CARB. The EPA and CARB warranties only apply to new engines having the certification label affixed to the engine and sold as stated above in the geographic areas governed by the regulating agencies.
NOTE: The hp/kW rating on the engine emissions certification label specifies the gross engine hp/kW, which is flywheel power without fan. In most applications this will not be the same rating as the advertised vehicle hp/kW rating.
