Operating Controls

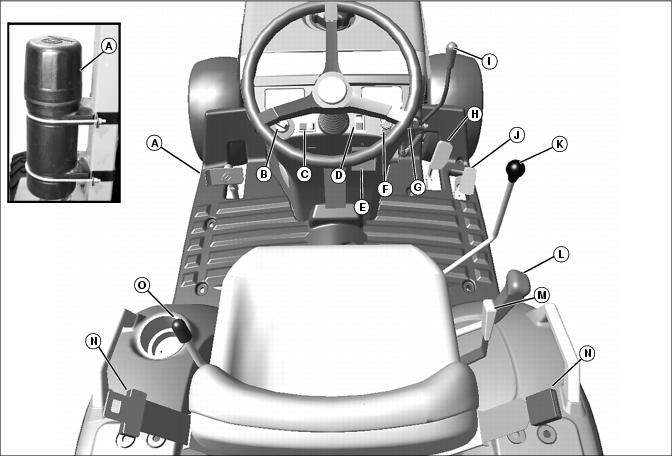

Operator Station Controls

MX27165, MX40337

A - Brake Pedal

B - Light Control/Warning Flasher Light Switch

C - Turn Signal Switch

D - Cruise Control (Optional)

E - Park Brake Lock

F - Power Take Off (PTO) Switch

G - Ignition Key Switch

H - Forward Travel Pedal

I - Engine Speed Hand Throttle

J - Reverse Travel Pedal

K - Selective Control Valve (SCV) Lever

L - Transmission Range Shift Lever

M - Rockshaft Control Lever

N - Seat Belt

O - Power Take Off (PTO) Selector Lever

P - Operator Manual Holder

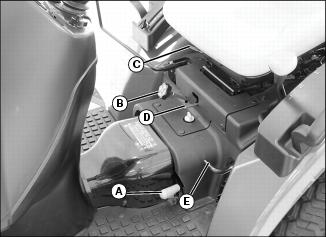

Floor Panel Controls

MX35672

A - Mechanical Front Wheel Drive (MFWD) Control Lever

B - Rockshaft Rate-of-Drop Control Knob

C - Operator Seat Adjustment Lever

D - Selective Control Valve (SCV) Lock Lever

E - Differential Lock Pedal
