Operating

Raising and Lowering Snowblower

1. Review Using Hydraulic Dual Selective Control Valve (SCV) and Using Dual Selective Control Valve Lock Lever instructions in your tractor operator’s manual.

2. Move dual SCV lever forward to lower the snowblower.

3. Move dual SCV lever rearward to raise the snowblower.

Turning Discharge Chute

1. Review Using Hydraulic Dual Selective Control Valve (SCV) and Using Dual Selective Control Valve Lock Lever instructions in your tractor operator’s manual.

2. Move dual SCV lever to the right to rotate chute to the right.

3. Move dual SCV lever to the left to rotate chute to the left.

Adjusting Spout

1. Park tractor safely. (See Parking Safely in SAFETY Section of tractor operator’s manual.)

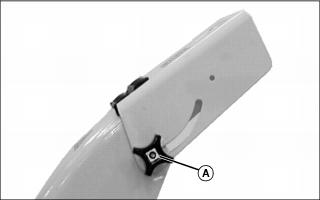

MX11501

2. Loosen knob (A).

3. Turn spout to desired position.

4. Tighten knob.

Adjusting Skid Shoes

1. Raise snowblower.

2. Put blocks under scraper blade on both sides of snowblower.

3. Lock park brake.

4. Stop engine and remove key.

5. Lower snowblower onto blocks.

NOTE: Both skid shoes must be installed in same position.

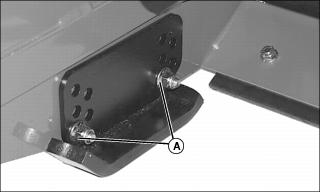

MX6977

6. Remove nuts (A) and bolts from each skid shoe.

7. Install bolts and nuts in holes to raise or lower the scraper blade in 13mm (1/2 in.) increments.

Operating Snowblower

Review Using the Power-Take-Off (PTO) Safely and Using Rear and Mid-PTO instructions in your tractor operator’s manual.

Review Using Hydraulic Dual Selective Control Valve (SCV) and Using Dual Selective Control Valve Lock Lever instructions in your tractor operator’s manual.

Using Kickstand

1. Park tractor safely. (See Parking Safely in SAFETY Section of tractor operator’s manual.)

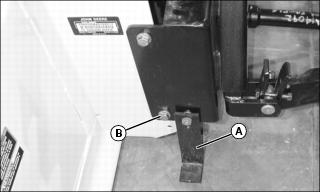

MX22535

2. Rotate the kickstand (A) counterclockwise to rest on screw (B) before operating the snowblower.

3. Rotate the kickstand clockwise to the vertical position as shown before removing the snowblower.

Engaging Snowblower

1. Start tractor engine.

2. Push dual SCV lever forward to completely lower snowblower to the ground and lock in float position.

3. Adjust engine throttle setting to 1500 rpm.

4. Engage PTO.

NOTE: Operate snowblower at full throttle position for best performance.

5. Move engine throttle to full throttle position.

6. Unlock tractor park brake.

7. Begin forward travel slowly.

Disengaging Snowblower

1. Stop tractor forward travel.

2. Adjust engine throttle setting to 950 rpm.

3. Disengage PTO.

4. Push dual SCV lever forward to completely lower snowblower to the ground.
