Operating Controls

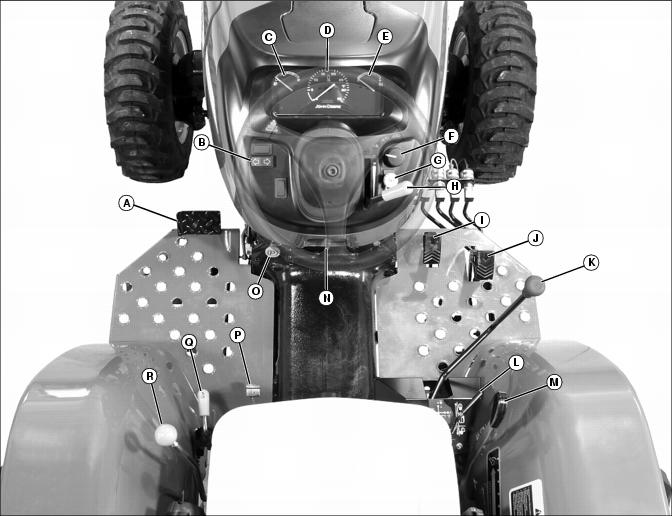

Operator Station Controls

MX36786

A - Brake Pedal

B - Turn Signal Switch

C - Fuel Gauge

D - Tachometer

E - Engine Coolant Temperature Gauge

F - Light Switch

G - PTO Engagement Knob

H - Hand Throttle Lever

I - Forward Travel Pedal

J - Reverse Travel Pedal

K - Dual Selective Control Valve (SCV) Lever

L - Dual Selective Control Valve (SCV) Lock Lever

M - Rockshaft Control Lever

N - Ignition Key Switch

O - Park Brake Lock Knob

P - Differential Lock Pedal

Q - Mechanical Front Wheel Drive (MFWD) Lever

R - Transmission Range Shift Lever

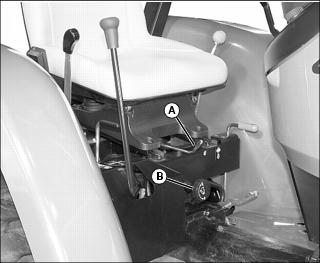

Floor Panel Controls

MX36787

A - Seat Adjust Lever

B - Rockshaft Rate-of-Drop Control Knob
