Service Steering & Brakes
Adjusting Brake Pedal

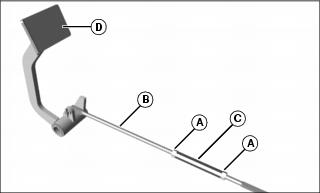

1. Loosen jam nuts (A) on brake linkage rod (B) and adjust turnbuckle (C) so there is about 22 - 30 mm (0.87 - 1.2 in.) of free play at the pedal (D).
2. Tighten jam nuts to lock turnbuckle in place.
Adjusting Parking Brake
The park brake linkage is not adjustable. When the brake pedal is fully depressed, pull back all the way on the park brake knob to engage, push in all the way to disengage.
