Specifications

Backhoes

M64109

Model 46

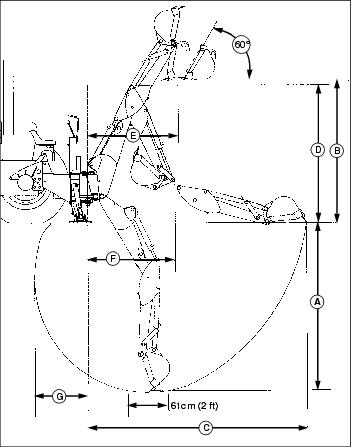

NOTE: Dimensions are given for backhoe with boom pivot pin 30cm (12 in.) above ground.

Digging Depth (A) (see note below) 1,98m (78 in.)

Swing Arc 180 degrees

Weight 407kg (896 lb)

Loading Height (bucket at 60°) (B) 1,5m (60 in.)

Reach From Center Line of Swing Pivot (C) 2,57m (101 in.)

Transport Height (D) 1,5m (60 in.)

Bucket Rotation 180 degrees

Loading Reach (bucket at 60°) (E) 97cm (38 in.)

Transport Overhang (F) 1,04m (41 in.)

Undercut (G) 71cm (28 in.)

Stabilizers Spread Width (Raised) 1,19m (47 in.)

Stabilizers Spread Width (Lowered) 1,98m (78 in.)

Boom Lift Capacity (see note below) 158kg (348 lb)

SAE Dipperstick Digging Force 5,56kN (1250 lb)

SAE Bucket Digging Force 10,90kN (2450 lb)

Bucket Control Main Relief Valve Pressure 15,51mPa (2250 psi)

Digging Depth: 61cm (24 in.) flat bottom.

Boom Lift Capacity: Dipper arm and boom extended, lifting with boom cylinder only, weight attached at bucket pivot, bucket pivot 91cm (36 in.) above ground.

Buckets

Model 46, 47

NOTE: 91cm (36 in.) bucket not for use on backhoe model 46.


Bucket Width	23cm (9 in.)	33cm (13 in.)	41cm (16 in.)	51cm (20 in.)	61cm (24 in.)	91cm (36 in.)
SAE Struck Capacity	0.014 m3 (0.49 ft3)	0.022 m3 (0.77 ft3)	0.028 m3 (0.98 ft3)	0.036 m3 (1.26 ft3)	0.044 m3 (1.54 ft3)	0.067 m3 (2.38 ft3)
Heaped Capacity	0.018 m3 (0.64 ft3)	0.029 m3 (1.04 ft3)	0.038 m3 (1.33 ft3)	0.049 m3 (1.74 ft3)	0.061 m3 (2.14 ft3)	0.095 m3 (3.34 ft3)

(Specifications and design subject to change without notice.)
