Operating - Controls

Operator Station Controls (PowrReverser)

MX36390

Picture Note: All controls shown may not be installed on your machine.

A - Reverser Lever

B - Light Control Switch

C - Engine Speed Hand Throttle Lever

D - Rear Power-Take-Off (PTO) Engagement Knob

E - Left Turn Brake Pedal

F - Right Turn Brake Pedal

G - Dual Selective Control Valve (SCV) Lever

H - MotionMatch™ Switch

I - Accel/Decel Switch

J - Cruise Control Switch

K - Third SCV Lever

L - Diverter Valve Switch

M - Rockshaft Adjustable Depth Stop Knob

N - Rockshaft Control Lever

O - Mid-PTO Engagement Knob

P - Seat Belt

Q - Engine Speed Foot Throttle

R - Ignition Key Switch

S - Tilt Steering Control Lever

T - Mechanical Front Wheel Drive (MFWD) Knob

U - Transmission Range Shift Lever

V - Transmission Range Shift Lever

W - Clutch Pedal

X - Turn Signal Switch

Y - Display Mode Switch

Operator Station Controls (eHydro No Cab)

MX36389

Picture Note: All controls shown may not be installed on your machine.

A - Turn Signal Switch

B - Display Mode Switch

C - Light Control Switch

D - Engine Speed Hand Throttle Lever

E - Rear Power-Take-Off (PTO) Engagement Knob

F - Ignition Key Switch

G - Forward Travel Pedal

H - Dual Selective Control Valve (SCV) Lever

I - Reverse Travel Pedal

J - MotionMatch™ Switch

K - Accel/Decel Switch

L - Cruise Control Switch

M - Third SCV Lever

N - Diverter Valve Switch

O - Rockshaft Adjustable Depth Stop Knob

P - Rockshaft Control Lever

Q - Mid-PTO Engagement Knob

R - Seat Belt

S - Mechanical Front Wheel Drive (MFWD) Knob

T - Transmission Range Shift Lever

U - Right Turn Brake Pedal

V - Left Turn Brake Pedal

W - Tilt Steering Control Lever

X - LoadMatch™ Switch

Operator Station Controls (eHydro With Cab)

MX36391

Picture Note: All controls shown may not be installed on your machine.

A - Turn Signal Switch

B - LoadMatch™ Switch

C - Front Windshield Washer Switch

D - Display Mode Switch

E - Light Control Switch

F - Engine Speed Hand Throttle Lever

G - Park Brake Switch

H - Dual Selective Control Valve (SCV) Lever

I - Third SCV Lever

J - Rockshaft Adjustable Depth Stop Knob

K - Rockshaft Control Lever

L - Power-Take-Off (PTO) Selector Lever

M - Beacon Switch

N - Cruise Control Switch

O - Accel/Decel Switch

P - MotionMatch™ Switch

Q - Rear Work Lights

R - Rear Windshield Washer Switch

S - Rear/Mid PTO Engagement Knob

T - Diverter Switch

U - Front PTO Engagement Knob

V - SCV Lock Lever

W - Reverse Travel Pedal

X - Forward Travel Pedal

Y - Keyswitch

Z - Tilt Steering Control Lever

AA - Right Turn Brake Pedal

AB - Seat Belt

AC - Transmission Range Shift Lever

AD - Left Turn Brake Pedal

AE - Horn

AF - Mechanical Front Wheel Drive (MFWD) Lever

Floor Panel Controls

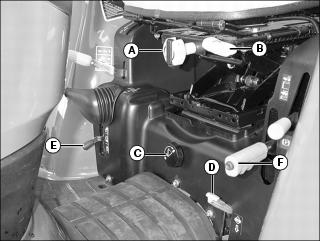

Tractor (No Cab)

MX20922

A - Operator Seat Weight Adjustment Knob

B - Operator Seat Adjustment Lever

C - Rockshaft Rate-of-Drop Control Knob

D - Differential Lock Pedal

E - Dual Selective Control Valve (SCV) Lock Lever

F - Park Brake Lever

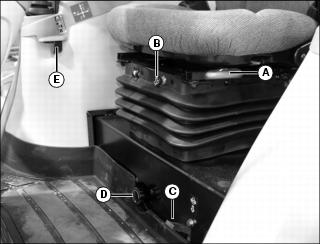

Tractor With Cab (Standard Seat)

MX22969

A - Operator Seat Weight Adjustment Knob

B - Operator Seat Adjustment Lever

C - Differential Lock Pedal

D - Rockshaft Rate-of-Drop Control Knob

E - Dual Selective Control Valve (SCV) Lock Lever

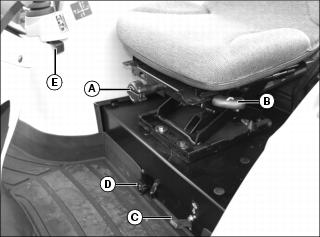

Tractor With Cab (Deluxe Seat)

MX22965

A - Operator Seat Adjustment Lever

B - Operator Seat Weight Adjustment Knob

C - Differential Lock Pedal

D - Rockshaft Rate-of-Drop Control Knob

E - Dual Selective Control Valve (SCV) Lock Lever

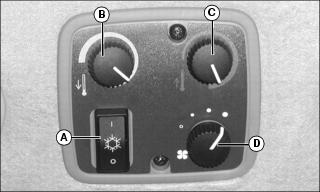

Air Temperature Controls

MX22964

A - Air Conditioning and Deicing Switch

B - Air Conditioning Temperature Control Knob

C - Heater Temperature Control Knob

D - Blower Speed Control Knob
