Safety Labels
Understanding The Machine Safety Labels
The machine safety labels shown in this section are placed in important areas on your machine to draw attention to potential safety hazards.
On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with this safety-alert symbol. DANGER identifies the most serious hazards.
The operator's manual also explains any potential safety hazards whenever necessary in special safety messages that are identified with the word, CAUTION, and the safety-alert symbol.
WARNING
Picture Note: Located on left loader boom cylinder.
Always install boom lock before working on or around this machine with the loader boom raised.
· Empty loader bucket and place in dump position, raise boom until boom lock channel can be positioned on cylinder rod, then stop engine.
· Pull pin and lower lock onto cylinder rod.
· Slowly lower boom until lock stops travel.
WARNING
Picture Note: Located on inner right post of ROPS.
AVOID CRUSHING. Do not jump if machine tips.
CAUTION
Picture Note: Located on inner left post of ROPS.
AVOID DEATH OR SERIOUS INJURY - Read and understand Operator's Manual before operating this machine.
· Before leaving seat: Lower working tools to ground, place in neutral and engage parking brake.
· Engage backhoe boom and swing locks before transporting.
· Avoid contact with overhead obstacles when operating or hauling machine.
WARNING
Picture Note: Located on upper PTO shaft shield.
AVOID INJURY FROM PTO .
· Keep hands, feet and clothing away.
DANGER/POISEN
Picture Note: Located on top of battery.
KEEP OUT OF REACH OF CHILDREN. DO NOT TIP. KEEP VENT CAPS TIGHT AND LEVEL.
· SHIELD EYES. EXPLOSIVE GASES CAN CAUSE BLINDNESS OR INJURY.
· SULFURIC ACID CAN CAUSE BLINDNESS OR SEVERE BURNS.
· FLUSH EYES IMMEDIATELY WITH WATER. GET MEDICAL HELP FAST.
DANGER
Picture Note: Located on top of starter.
Start only from seat in park or neutral.
CAUTION
Picture Note: Molded onto muffler.
No-text warning: Hot Surface.
· Do not touch engine muffler, it may be hot.
WARNING
Picture Note: Located on top of coolant fan shroud.
· DO NOT OPEN PURGE VALVE WHILE ENGINE IS WARM AND WITHOUT FIRST READING OPERATOR'S MANUAL.
· VALVE WILL RELEASE HOT PRESSURIZED COOLANT AND SERIOUS INJURY MAY RESULT.
WARNING
Picture Note: Located on top of backhoe crowd cylinder.
Turn engine "OFF" before leaving backhoe seat.
WARNING
Picture Note: Located on wedge bar at backhoe bucket attach point.
DO NOT OPERATE ATTACHMENT WITHOUT WEDGE BAR BOLT TIGHTENED TO (100 FT LBS) AND LYNCH PINS INSERTED INTO WEDGE BAR PINS. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY IF ATTACHMENT COMES OFF.
WARNING
Picture Note: Located on backhoe on front of right-side foot guard.
· Keep both feet on platform and away from stabilizers when operating.
WARNING
Picture Note: Located on backhoe on back of right-side foot guard.
· Enter and exit only from this side.
· Avoid contact with controls when entering and exiting.
· DO NOT operate controls from the ground.
WARNING
Picture Note: Located on backhoe on back of left-side foot guard.
· Operate controls only from seat.
· DO NOT enter or exit from this side.

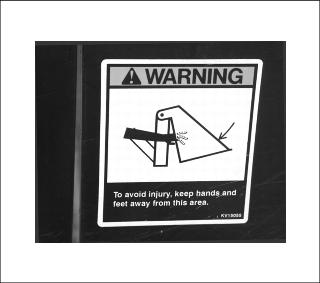

WARNING
Picture Note: On each side of multi-purpose loader bucket only.
To avoud injury, keep hands and feet away from this area.
Emission Control System Certification Label
c CAUTION: Avoid injury! Statutes providing severe penalties for tampering with emissions controls may apply at the user's location.
|
The emissions warranty described in the warranty section applies only to those engines marketed by John Deere that have been certified by the United States Environmental Protection Agency (EPA) and/or California Air Resources Board (CARB); and used in the United States in non-road mobile (self-propelled or portable/transportable1) equipment. The presence of an emissions label like the one shown signifies that the engine has been certified with the EPA and/or CARB. The EPA and CARB warranties only apply to new engines having the certification label affixed to the engine and sold as stated above in the geographic areas governed by the regulating agencies.
NOTE: The hp/kW rating on the engine emissions certification label specifies the gross engine hp/kW, which is flywheel power without fan. In most applications this will not be the same rating as the advertised vehicle hp/kW rating.
