Safety Labels

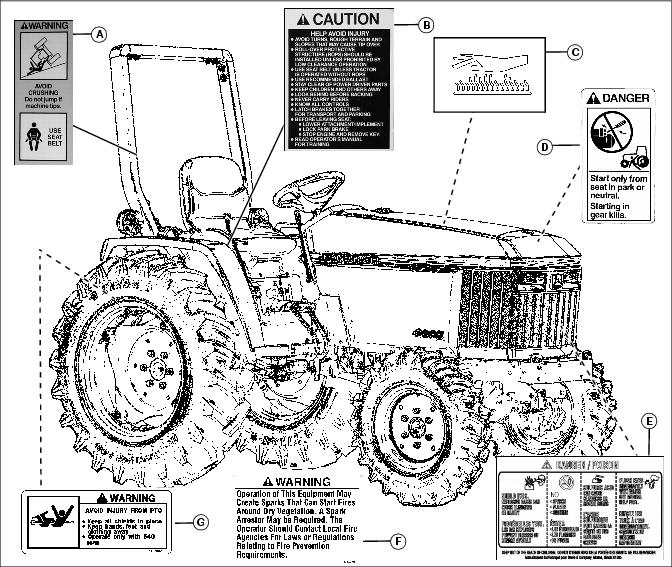

Safety Label Location

MX42077

Picture Note: Use label number listed in table below to locate complete text of safety label message following this illustration.

A - WARNING LVU800915

B - CAUTION LVU803815

C - CAUTION HOT SURFACE (embossed on muffler)

D - DANGER T146102

E - DANGER/POISON

F - WARNING M159705

G - WARNING LVU801032

Understanding The Machine Safety Labels

The machine safety labels shown in this section are placed in important areas on your machine to draw attention to potential safety hazards.

On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with this safety-alert symbol. DANGER identifies the most serious hazards.

The operator’s manual also explains any potential safety hazards whenever necessary in special safety messages that are identified with the word, CAUTION, and the safety-alert symbol.

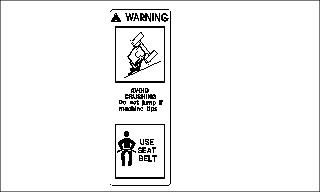

WARNING - LVU800915

LVU800915

• AVOID CRUSHING

• Do not jump if machine tips

• USE SEAT BELT

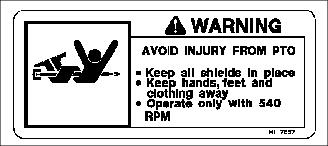

WARNING M117557

M117557

AVOID INJURY FROM PTO .

• Keep all shields in place.

• Keep hands, feet and clothing away.

• Operate only with 540 RPM.

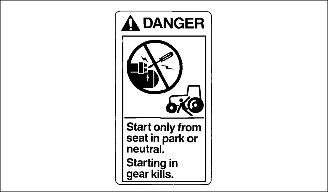

DANGER T146102

T146102

Start only from seat in park or neutral.

Starting in gear kills.

DANGER / POISON

KEEP OUT OF REACH OF CHILDREN.

LVA15187 / LVA15188

• SHIELD EYES. EXPLOSIVE GASES CAN CAUSE BLINDNESS OR INJURY.

• NO SPARKS, FLAMES, SMOKING.

• SPARKS

• FLAMES

• SMOKING

• SULFURIC ACID CAN CAUSE BLINDNESS OR SEVERE BURNS.

• FLUSH EYES IMMEDIATELY WITH WATER. GET MEDICAL HELP FAST.

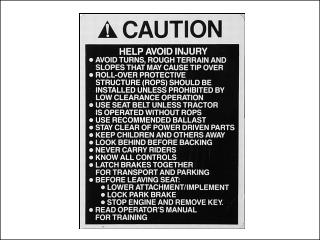

CAUTION - LVU803815

HELP AVOID INJURY

LVU803815

• AVOID TURNS, ROUGH TERRAIN AND SLOPES THAT MAY CAUSE TIP OVER.

• ROLL-OVER PROTECTIVE STRUCTURE (ROPS) SHOULD BE INSTALLED UNLESS PROHIBITED BY LOW CLEARANCE OPERATION.

• USE SEAT BELT UNLESS TRACTOR IS OPERATED WITHOUT ROPS.

• USE RECOMMENDED BALLAST.

• STAY CLEAR OF POWER DRIVEN PARTS.

• KEEP CHILDREN AND OTHERS AWAY.

• LOOK BEHIND BEFORE BACKING.

• NEVER CARRY RIDERS.

• KNOW ALL CONTROLS.

• LATCH BRAKES TOGETHER FOR TRANSPORT AND PARKING.

• BEFORE LEAVING SEAT:

• LOWER ATTACHMENT / IMPLEMENT

• LOCK PARK BRAKE.

• STOP ENGINE AND REMOVE KEY.

• READ OPERATOR’S MANUAL FOR TRAINING.

Warning M159705

M159705

Picture Note: This label is required and installed on machines sold in California. This label may also be installed on machines sold in other locations.

Operation of This Equipment May Create Sparks that Can Start Fires Around Dry Vegetation. A Spark Arrestor May be Required. The Operator Should Contact Local Fire Agencies For Laws or Regulations Relating to Fire Prevention Requirements.

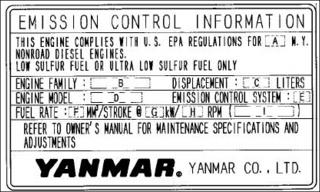

Emission Control System Certification Label

c CAUTION: Avoid injury! Statutes providing severe penalties for tampering with emissions controls may apply at the user’s location.

The emissions warranty described in the warranty section applies only to those engines marketed by John Deere that have been certified by the United States Environmental Protection Agency (EPA) and/or California Air Resources Board (CARB); and used in the United States in non-road mobile (self-propelled or portable/transportable¹) equipment. The presence of an emissions label like the one shown signifies that the engine has been certified with the EPA and/or CARB. The EPA and CARB warranties only apply to new engines having the certification label affixed to the engine and sold as stated above in the geographic areas governed by the regulating agencies.

NOTE: The hp/kW rating on the engine emissions certification label specifies the gross engine hp/kW, which is flywheel power without fan. In most applications this will not be the same rating as the advertised vehicle hp/kW rating.
