Operating - Controls

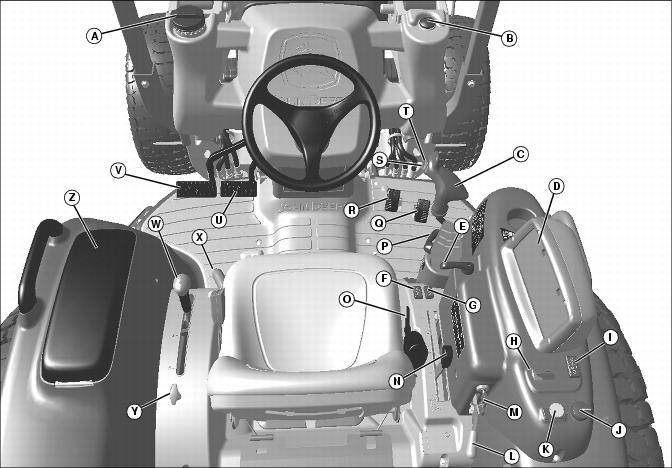

Operator Station Controls

MX39404

A - Fuel Filler Cap

B - Fuel Gauge

C - Dual Selective Control Valve (SCV) Handle

D - Instrument Panel

E - Turn Signal Lever

F - Third Selective Control Valve (SCV) ON/OFF Switch (Optional)

G - Third Selective Control Valve (SCV) Continuous Switch (Optional)

H - Repositioning Creeper Drive Speed Control

I - Repositioning Creeper Drive Direction Switch

J - Light Control Switch

K - PTO Knob

L - Engine Speed Hand Throttle Lever

M - Ignition Key Switch

N - Rockshaft Control Lever

O - Seat Belt

P - Selective Control Valve (SCV) Lock Lever

Q - Reverse Travel Pedal

R - Forward Travel Pedal

S - Third Selective Control Valve (SCV) Momentary Switch (Optional)

T - Diverter Control Valve Diverter Switch (Optional)

U - Right Turn Brake Pedal

V - Left Turn Brake Pedal

W - Transmission Range Shift Lever

X - Park Brake Lock Lever

Y - MFWD Engagement Knob

Z - Operator Manual Holder

Floor Panel Controls

MX22908

A - Seat Position Lock Release Lever

B - Operator Seat Adjustment Lever

C - Differential Lock Lever

D - Rockshaft Rate-of-Drop Control Knob

E - Operator Seat Weight Adjustment Knob

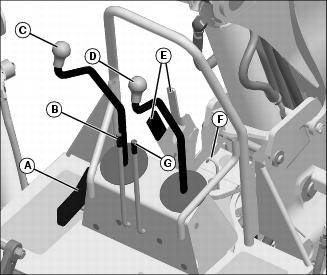

Backhoe Operator Station

MX39250

A - Auxiliary Hydraulics Foot Pedal (Optional)

B - Left Stabilizer Lever

C - Boom Control and Swing Lever

D - Dipperstick and Bucket Lever

E - Boom Lock

F - Swing Lock

G - Right Stabilizer Lever
