Operating - Controls

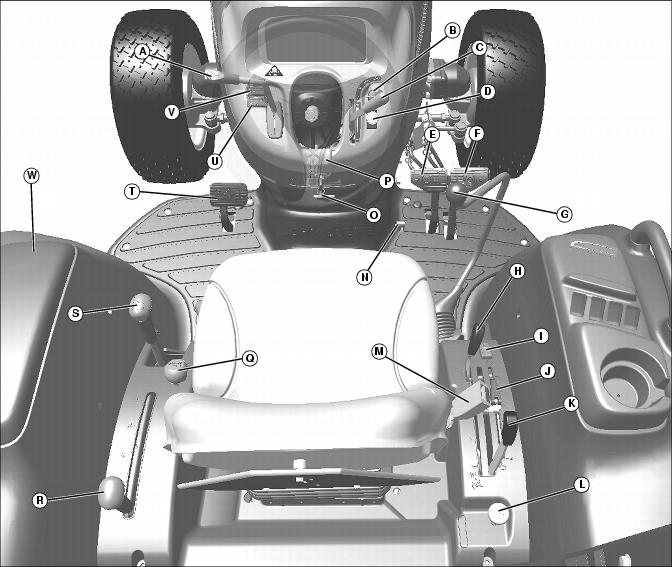

Operator Station Controls (PowrReverser)

MX40884

Picture Note: All controls shown may not be installed on your machine.

A - Reverser Lever

B - Light Control Switch

C - Engine Speed Hand Throttle Lever

D - Rear Power-Take-Off (PTO) Engagement Knob

E - Left Turn Brake Pedal

F - Right Turn Brake Pedal

G - Dual Selective Control Valve (SCV) Lever

H - Third SCV Lever

I - Diverter Valve Switch

J - Rockshaft Adjustable Depth Stop Knob

K - Rockshaft Control Lever

L - Mid-PTO Engagement Knob

M - Seat Belt

N - Engine Speed Foot Throttle

O - Ignition Key Switch

P - Tilt Steering Control Lever

Q - Mechanical Front Wheel Drive (MFWD) Knob

R - Transmission Range Shift Lever

S - Transmission Gear Shift Lever

T - Clutch Pedal

U - Turn Signal Switch

V - Display Mode Switch

W - Operator Manual Holder

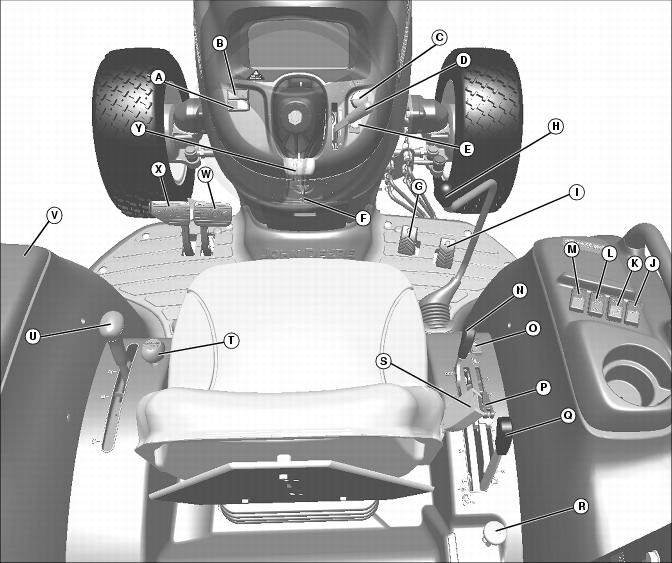

Operator Station Controls (eHydro No Cab)

MX26972a

Picture Note: All controls shown may not be installed on your machine.

A - Turn Signal Switch

B - Display Mode Switch

C - Light Control Switch

D - Engine Speed Hand Throttle Lever

E - Rear Power-Take-Off (PTO) Engagement Knob

F - Ignition Key Switch

G - Forward Travel Pedal

H - Dual Selective Control Valve (SCV) Lever

I - Reverse Travel Pedal

J - eThrottle™ Switch

K - MotionMatch™ Switch

L - Accel/Decel Switch

M - Cruise Control Switch

N - Third SCV Lever

O - Diverter Valve Switch

P - Rockshaft Adjustable Depth Stop Knob

Q - Rockshaft Control Lever

R - Mid-PTO Engagement Knob

S - Seat Belt

T - Mechanical Front Wheel Drive (MFWD) Knob

U - Transmission Range Shift Lever

V - Operator Manual Holder

W - Right Turn Brake Pedal

X - Left Turn Brake Pedal

Y - Tilt Steering Control Lever

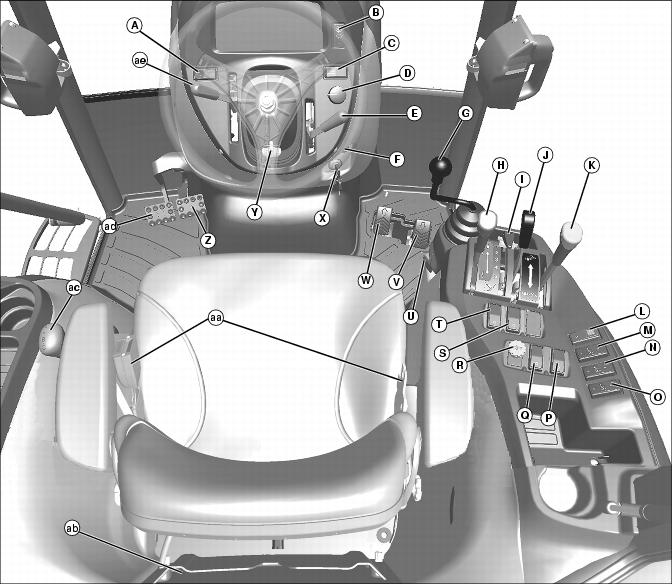

Operator Station Controls (eHydro With Cab)

MX26980a

Picture Note: All controls shown may not be installed on your machine.

A - Turn Signal Switch

B - Front Windshield Wiper/Washer Switch

C - Display Mode Switch

D - Light Control Switch

E - Engine Speed Hand Throttle Lever

F - Park Brake Switch

G - Dual Selective Control Valve (SCV) Lever

H - Third SCV Lever

I - Rockshaft Adjustable Depth Stop Knob

J - Rockshaft Control Lever

K - Power-Take-Off (PTO) Selector Lever

L - Beacon Switch

M - Cruise Control Switch

N - Accel/Decel Switch

O - MotionMatch™ Switch

P - Rear Work Lights

Q - Rear Windshield Washer Switch

R - Rear/Mid PTO Engagement Knob

S - Diverter Switch

T - eThrottle™ Switch

U - SCV Lock Lever

V - Reverse Travel Pedal

W - Forward Travel Pedal

X - Keyswitch

Y - Tilt Steering Control Lever

Z - Right Turn Brake Pedal

AA - Seat Belt

AB - Operator Manual Holder

AC - Transmission Range Shift Lever

AD - Left Turn Brake Pedal

AE - Mechanical Front Wheel Drive (MFWD) Lever

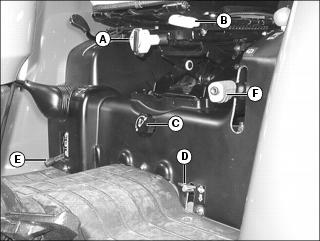

Floor Panel Controls

Tractor (No Cab)

MX32702

A - Operator Seat Weight Adjustment Knob

B - Operator Seat Adjustment Lever

C - Rockshaft Rate-of-Drop Control Knob

D - Differential Lock Pedal

E - Dual Selective Control Valve (SCV) Lock Lever

F - Park Brake Lever

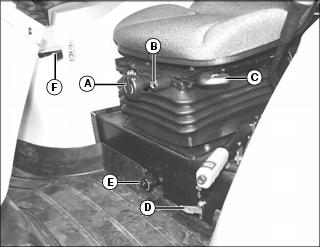

Tractor With Cab (Standard Seat)

MX35763

A - Operator Seat Weight Adjustment Knob

B - Seat Level Adjustment Knob

C - Operator Seat Adjustment Lever

D - Differential Lock Pedal

E - Rockshaft Rate-of-Drop Control Knob

F - Dual Selective Control Valve (SCV) Lock Lever

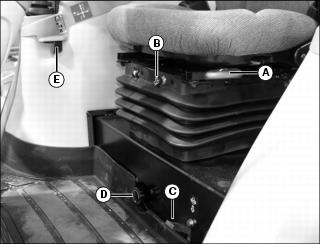

Tractor With Cab (Deluxe Seat)

MX22965

A - Operator Seat Adjustment Lever

B - Operator Seat Weight Adjustment Knob

C - Differential Lock Pedal

D - Rockshaft Rate-of-Drop Control Knob

E - Dual Selective Control Valve (SCV) Lock Lever

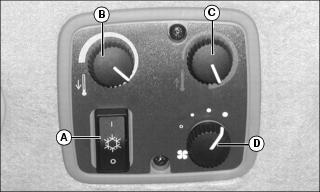

Air Temperature Controls

MX22964

A - Air Conditioning and Deicing Switch

B - Air Conditioning Temperature Control Knob

C - Heater Temperature Control Knob

D - Blower Speed Control Knob
