Operating Controls

Operator Station Controls

MX27097a

A - Brake/Differential Lock Pedal

B - Horn Button

C - Turn Signal Switch

D - Hazard Light Switch

E - Tachometer

F - Light Switch

G - Key Switch

H - Hand Throttle Lever

I - Forward Travel Pedal

J - Reverse Travel Pedal

K - Rockshaft Depth Stop

L - Rockshaft Control Lever

M - Cruise Control Switch (Optional)

N - PTO Engagement Knob

O - Seat Belt

P - Transmission Range Shift Lever

Q - Park Brake Lever

R - Operator Manual Holder

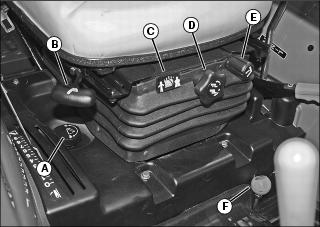

Floor Panel Controls

MX27098

A - Drop/Lock Valve

B - Seat Adjust Lever

C - Weight Adjustment Indicator

D - Weight Adjustment Knob

E - Height Adjustment Knob

F - Mechanical Front Wheel Drive (MFWD) Lever
