Service Engine
Engine Warranty Maintenance Statement
Maintenance, repair, or replacement of the emission control devices and systems on this engine, which are being done at the customer’s expense, may be performed by any non-road engine repair establishment or individual. Warranty repairs must be performed by an authorized John Deere dealer.
Avoid Fumes
Engine Oil

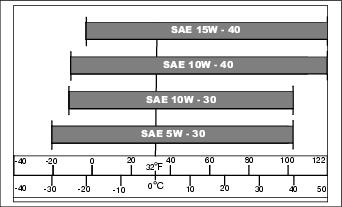

Use oil viscosity based on the expected air temperature range during the period between oil changes.
The following John Deere oils are preferred:
Other oils may be used if above John Deere oils are not available, provided they meet the following specification:
• API Service Classification CH or higher
• ACEA Specification E3 or higher
Checking Engine Speeds
Check engine speeds when engine is warmed up and not under load.
Observe tachometer.
If above engine speeds are not to specifications, see your John Deere dealer.
Checking Engine Oil Level
NOTE: Check oil twice a day if you run engine over 4 hours in a day.
Make sure engine is cold when checking engine oil level.
1. Park the machine safely. (See Parking Safely in the SAFETY section.)
IMPORTANT: Avoid damage! Dirt and contamination can enter engine when checking oil level. Clean area around dipstick before loosening or removing. |
3. Remove dipstick (A), located at the right side of the engine. Wipe with a clean cloth.
6. Check oil level on dipstick. Oil level should be between levels (C) and (D) on dipstick.
c. Add recommended engine oil until level is within operating range on dipstick. Do not overfill.
8. If oil is above top hole mark on the dipstick, drain to proper level.
Changing Engine Oil and Filter
IMPORTANT: Avoid damage! Change the oil more often if the vehicle is used in extreme conditions: |
1. Run engine to warm the oil.
2. Park machine safely. (See Parking Safely in the SAFETY section.)
5. Place container under oil drain plug (A) located on under side of engine.
7. Wipe dirt from around oil filter (B).
8. Turn filter counter-clockwise to remove.
9. Put a light coat of clean engine oil on the gasket of new filter.
10. Install replacement oil filter by turning filter clockwise until gasket contacts filter base. Tighten additional one half turn.
11. Install drain plug. Do not overtighten.
13. Add 3.2 L (3.4 qt) engine oil.
15. Start and run engine at idle to check for leaks.
16. Stop engine. Fix any leaks before operating.
17. Check engine oil level. Add oil if necessary.
Cleaning Dust Unloading Valve
IMPORTANT: Avoid damage! Do not operate engine without air cleaner element and rubber dust unloading valve installed. |
1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)
3. Access the engine compartment.

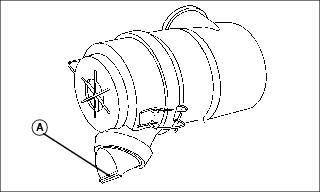

4. Squeeze dust unloading valve (A) to clean. Remove and replace if damaged.
Servicing Air Filter Elements
Servicing Primary Air Filter Element:
1. Park machine safely. (See Park Safely in the SAFETY section.)

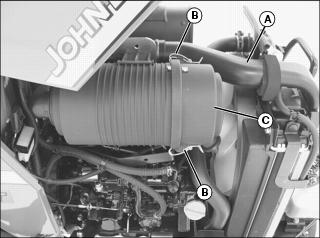

4. Move upper air intake (A) from top radiator flange.
5. Release latches (B) and remove cover (C).
6. Remove and discard primary element (D). Replace with a new primary filter element.
7. Install cover (C) with rubber dust unloading valve pointing downward with arrows aligned.
8. Hook latches (B) onto cover.
Servicing Secondary Air Filter Element:
2. Remove and discard primary air filter element.
3. Remove and discard secondary air filter element (E). Replace with a new secondary air filter element.
4. Install new primary air filter element.
5. Install cover (C) with rubber dust unloading valve pointing downward with arrows aligned.
6. Hook latches (B) onto cover.
Checking Air Filter Intake Hoses and Clamps
1. Park machine safely. (See Parking Safely in the SAFETY section.)
3. Tighten upper air intake hose clamp (A) and lower air intake hose clamps (B).
Service Cooling System Safely
Recommended Engine Coolant
The engine cooling system is filled to provide year-round protection against corrosion and cylinder liner pitting, and winter freeze protection to -37 degrees C (-34 degrees F). If protection at lower temperatures is required, consult your John Deere dealer for recommendations.
The following coolants are preferred:
• John Deere COOL-GARD II™ Premix
• John Deere COOL-GARD PG Premix
John Deere COOL-GARD II Premix and John Deere COOL-GARD Premix are available in a concentration of 50% propylene glycol.
John Deere COOL-GARD PG Premix is available in a concentration of 55% propylene glycol.
Additional recommended coolants:
• John Deere COOL-GARD II Concentrate in a 40% to 60% mixture of concentrate with water.
• John Deere COOL-GARD Concentrate in a 40% to 60% mixture of concentrate with water.
If the recommended coolants are unavailable, use an ethylene glycol or propylene glycol base coolant that meets the following specification:
• ASTM D3306 prediluted (50%) coolant.
• ASTM D3306 coolant concentrate in a 40% to 60% mixture of concentrate with water.
Check container label before using to be sure it has the appropriate specifications for your machine. Use coolant with conditioner or add conditioner to coolant before using.
Water Quality
• Water quality is important to the performance of the cooling system. Distilled, deionized, or demineralized water is recommended with ethylene glycol base engine coolant concentrate.
Servicing Cooling System
Checking Cooling System
1. Park machine safely. (See Parking Safely in the SAFETY section.)

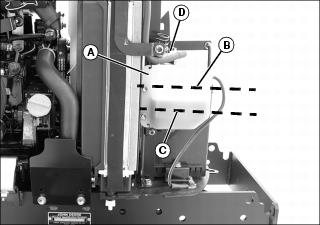

5. Check recovery tank (A) coolant level:
• If engine is warm, coolant level should be between the FULL line (B) and the LOW line (C).
• If engine is cold, coolant level should be at the LOW line (C) on the recovery tank.
6. Remove recovery tank cap (D) if needed to add coolant.
Draining Cooling System
1. Park machine safely. (See Parking Safely in the SAFETY section.)

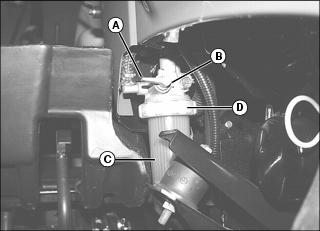

5. Slowly open radiator cap (B) to the first stop to release all pressure.
6. Close radiator cap tightly.

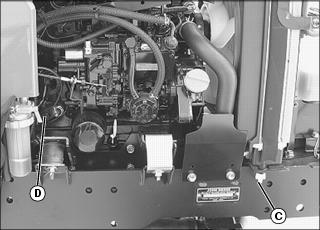

7. Open radiator petcock (C) at right side of engine and drain coolant.
8. Remove engine block drain plug (D) and drain all coolant.
9. When coolant drains from the recovery tank, remove the radiator cap.
10. Close radiator petcock and install engine block drain plug.
Flushing Cooling System
1. Fill cooling system with clean water and John Deere Cooling System Cleaner, or John Deere Cooling System Quick Flush or an equivalent. Follow directions on the container.
2. Install and tighten radiator cap.
3. Start and run engine until it reaches operating temperature.
5. Open radiator petcock and remove engine block drain plug.
6. Drain cooling system immediately before rust and dirt settle.
7. Close radiator petcock and install engine block drain plug.
Filling Cooling System
NOTE: John Deere COOL-GARD coolant is recommended when adding new coolant to the cooling system.
Follow the directions on the container for correct mixture ratio.
• Cooling system capacity is 3.2 L (3.4 qt).
3. Install and tighten radiator cap.
4. Run engine until it reaches operating temperature.
6. Check recovery tank coolant level and add coolant if necessary
Checking Radiator Hoses and Clamps
1. Park machine safely. (See Parking Safely in the SAFETY section.)
NOTE: Visually inspect hoses for cracks and wear. Squeeze hoses to check for deterioration. Hoses should not be hard and brittle, nor soft or swollen.
4. Check upper radiator hose (A) for damage or cracking. Replace if necessary.
5. Check hose clamps (B) as needed.
6. Check lower radiator hose (C) for damage or cracking. Replace if necessary.
7. Remove plate (D), and check hose clamps (E) as needed.
Cleaning Radiator Cooling Screen and Fins
c CAUTION: Avoid injury! Compressed air can cause debris to fly a long distance.
• Clear work area of bystanders. • Wear eye protection when using compressed air for cleaning purposes. |
IMPORTANT: Avoid damage! The radiator cooling screen must be clean to prevent engine from overheating and to allow adequate air intake. |
Cleaning Radiator Cooling Screen
1. Park machine safely. (See Parking Safely in the SAFETY section.) Allow engine to cool.

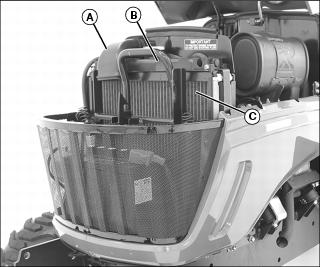

3. Remove air intake pipe (A) from position on top of radiator.
4. Lift tab (B) to slide radiator screen (C) up out of retaining slot.
5. Clean screen with compressed air, brush or cloth.
Cleaning Radiator Cooling Fins
2. Remove all dirt and debris from fins at front and rear of radiator (B) including fan shroud using compressed air or water.
3. Install radiator cooling screen.
5. Install air intake pipe to position on top of radiator.
Servicing the Alternator Belt
|
c CAUTION: Avoid injury! Rotating parts can catch fingers, loose clothing, or long hair. Wait for engine and all moving parts to stop before leaving operator’s station to adjust or service machine.
|
Checking Belt Tension
1. Park machine safely. (See Parking Safely in the SAFETY section.) Allow engine to cool.

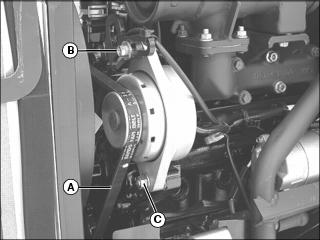

4. Apply moderate thumb pressure to belt (A) halfway between the pulleys. Belt should deflect inward approximately 9 mm (3/8 in.).
5. Adjust belt tension if deflection is more or less than specified.
Adjusting Belt Tension
3. Apply outward pressure to alternator housing until tension is correct.
4. Tighten bolt (B) and nut (C).
Replacing Belt
NOTE: Replace alternator belt if excessive wear, damage or stretching is detected.
1. Park machine safely. (See Parking Safely in the SAFETY section.) Allow engine to cool.
6. Apply inward pressure to alternator housing.
7. Remove belt from alternator sheave, fan sheave and crankshaft sheave.
8. Route belt over fan and remove.
9. Install new belt over fan and onto sheaves.
10. Apply outward pressure to alternator housing until tension is correct.
11. Tighten bolts (B) and (C).
12. Check belt tension. Adjust as necessary.
13. Connect black negative (-) cable to battery.
Checking and Cleaning Fuel Filter Sediment Bowl and Replacing Filter
NOTE: Change filter when fuel is low.
Checking Sediment Bowl
1. Park machine safely. (See Parking Safely in the SAFETY section.) Allow engine to cool.
2. Check fuel sediment bowl. If water and deposits are detected, remove bowl and replace fuel filter.
Cleaning Sediment Bowl and Replacing Fuel Filter
1. Move the fuel shut-off valve (A) to the “C” (closed) position (B).
2. Position drain pan under fuel filter sediment bowl (C).
3. Turn locking collar (D) counterclockwise to remove bowl.
4. Remove and discard the fuel filter.
6. Install new filter to filter head.
7. Install sediment bowl and locking collar.
NOTE: Fuel system is self bleeding.
9. Crank engine to bleed fuel system.
Fuel Injection Pump
IMPORTANT: Avoid damage! Do not clean a warm or hot fuel injection pump with steam or water. Clean with compressed air if pump is not cooled. |
NOTE: The fuel injection pump is calibrated by the engine manufacturer and should not require any adjustments.
If engine is hard to start, lacks power, or runs rough, see Troubleshooting Section of this manual.
After performing the check in the troubleshooting section and your engine is still not performing correctly, contact your John Deere dealer.
Fuel Injection Nozzles
If injection nozzles are not working correctly or are dirty, engine will run poorly. See your John Deere dealer for service.

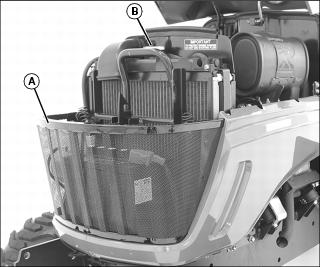

Cleaning Front Grille Screens
IMPORTANT: Avoid damage! Grille and side screens must be clean to prevent engine from overheating and to allow adequate air intake. |
1. Check front grille screens for dirt, grass clippings and debris.
2. Raise hood, remove front grille, and clean screens with a brush or cloth.
