Assembly
Install Stabilizers and Front Mounting Bracket
1. Remove pivot pins and retainers stored in stabilizers.
NOTE: Lubricate all pivot pins before installation.
2. Install both stabilizers (A) on backhoe with pivot pin (B) inserted from backhoe side of stabilizer. Install retainer (C) in pivot pin on tractor side of stabilizer.
3. Install foot end of stabilizer to cylinder with pivot pin (D) inserted from backhoe side of stabilizer. Install retainer (E) in pivot pin on tractor side of stabilizer.
4. Align and install front mount frame onto backhoe brackets using eight 5/8x2 in. bolts (A), sixteen washers, and eight nuts. Torque to 180 ft. lbs. (244 N•m).
Install Bucket
NOTE: Lubricate all pivot pins before installation.

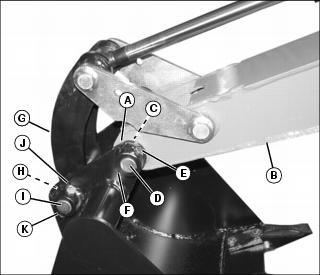

1. Align holes in bucket ears (A) with holes in dipperstick (B).
2. Insert spacer (C), if required, between dipperstick and bucket to minimize side to side clearance. Install pivot pin (D). Secure with bolt (E) and nut (F).
3. Align holes in bucket with holes in link (G).
4. Insert spacer (H), if required, between link and bucket to minimize side to side clerance. Install pivot pin (I). Secure with bolt (J) and nut (K).
Lubricate Backhoe
Lubricate all grease points before operating backhoe.
