Service Lubrication


IMPORTANT: Avoid damage! Use recommended John Deere greases to avoid component failure and premature wear. The recommended John Deere greases are effective within an average air temperature range of -29 to 135 degrees C (-20 to 275 degrees F). If operating outside that temperature range, contact your Servicing dealer for a special-use grease.

• John Deere Multi-Purpose SD Polyurea Grease

• John Deere Multi-Purpose HD Lithium Complex Grease

If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.

Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

• SUPER LUBE® lubricant.¹

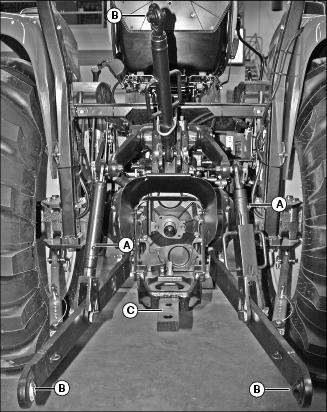

MX26960

• Lubricate lift link grease fittings (A) with recommended grease or an equivalent.

• Lubricate ball joints (B) and draw bar (C) with SUPER LUBE lubricant.

SUPER LUBE is a registered trademark of Synco Chemical Corp.
