Operating - Controls

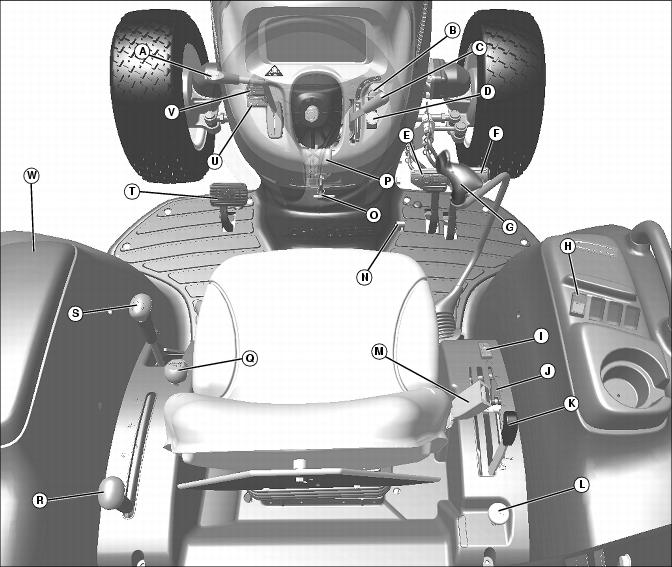

Operator Station Controls (PowrReverser)

MX40884b

Picture Note: All controls shown may not be installed on your machine.

A - Reverser Lever

B - Light Control Switch

C - Engine Speed Hand Throttle Lever

D - Rear Power-Take-Off (PTO) Engagement Knob

E - Left Turn Brake Pedal

F - Right Turn Brake Pedal

G - Dual Selective Control Valve (SCV) Lever

H - I Rear Outlet Activation Switch

I - Diverter II and III Rear Outlet Enable Switch

J - Rockshaft Adjustable Depth Stop Knob

K - Rockshaft Control Lever

L - Mid-PTO Engagement Knob

M - Seat Belt

N - Engine Speed Foot Throttle

O - Ignition Key Switch

P - Tilt Steering Control Lever

Q - Mechanical Front Wheel Drive (MFWD) Knob

R - Transmission Range Shift Lever

S - Transmission Gear Shift Lever

T - Clutch Pedal

U - Turn Signal Switch

V - Display Mode Switch

W - Operator Manual Holder

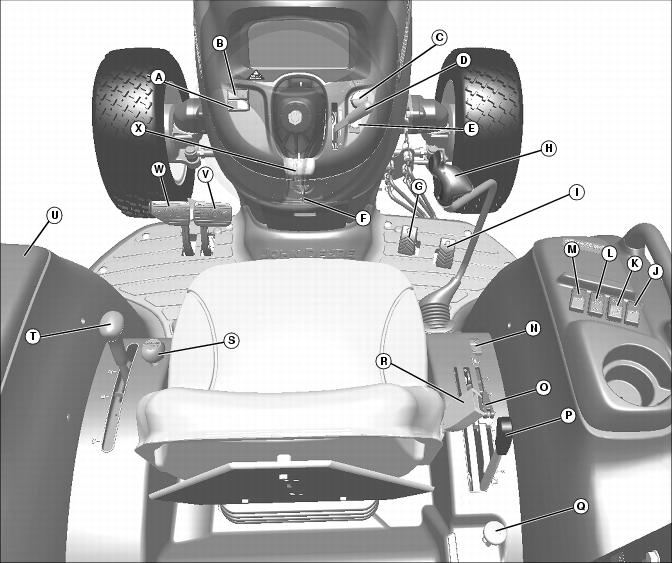

Operator Station Controls (eHydro No Cab)

MX26972c

Picture Note: All controls shown may not be installed on your machine.

A - Turn Signal Switch

B - Display Mode Switch

C - Light Control Switch

D - Engine Speed Hand Throttle Lever

E - Rear Power-Take-Off (PTO) Engagement Knob

F - Ignition Key Switch

G - Forward Travel Pedal

H - Dual Selective Control Valve (SCV) Lever

I - Reverse Travel Pedal

J - eThrottle™ Switch

K - MotionMatch™ Switch

L - Accel/Decel Switch

M - I Rear Outlet Activation Switch

N - Diverter II and III Rear Outlet Enable Switch

O - Rockshaft Adjustable Depth Stop Knob

P - Rockshaft Control Lever

Q - Mid-PTO Engagement Knob

R - Seat Belt

S - Mechanical Front Wheel Drive (MFWD) Knob

T - Transmission Range Shift Lever

U - Operator Manual Holder

V - Right Turn Brake Pedal

W - Left Turn Brake Pedal

X - Tilt Steering Control Lever

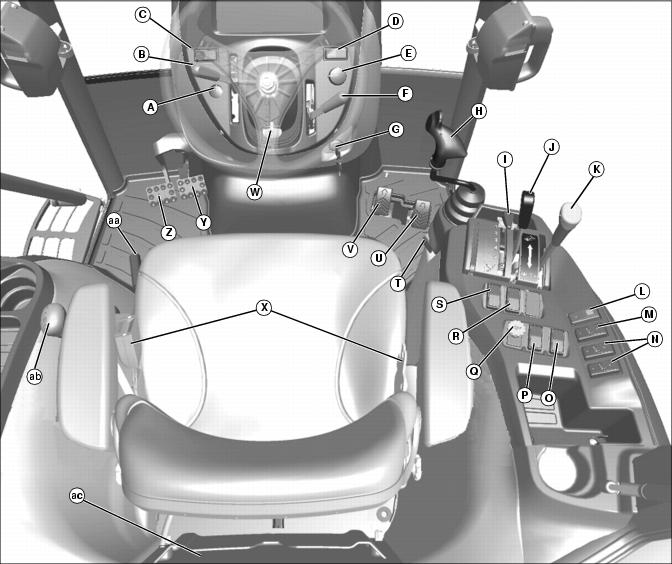

Operator Station Controls (eHydro With Cab)

MX46194b

Picture Note: All controls shown may not be installed on your machine.

A - Front Windshield Wiper/Washer Switch

B - Mechanical Front Wheel Drive (MFWD) Lever

C - Turn Signal Switch

D - Display Mode Switch

E - Light Control Switch

F - Engine Speed Hand Throttle Lever

G - Keyswitch

H - Dual Selective Control Valve (SCV) Lever

I - Rockshaft Adjustable Depth Stop Knob

J - Rockshaft Control Lever

K - Power-Take-Off (PTO) Selector Lever

L - eThrottle™ Switch

M - Cruise Control Switch

N - IV and V Rear Outlet Activation Switches

O - Rear Work Lights

P - Rear Windshield Washer Switch

Q - Rear/Mid PTO Engagement Knob

R - Diverter II and III Rear Outlet Enable Switch

S - I Rear Outlet Activation Switch

T - SCV Lock Lever

U - Reverse Travel Pedal

V - Forward Travel Pedal

W - Tilt Steering Control Lever

X - Seat Belt

Y - Right Turn Brake Pedal

Z - Left Turn Brake Pedal

AA - Park Brake Lever

AB - Transmission Range Shift Lever

AC - Operator Manual Holder

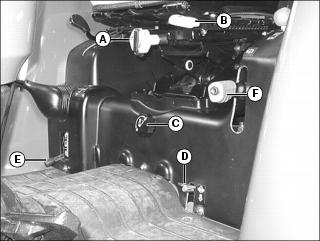

Floor Panel Controls

Tractor (No Cab)

MX32702

A - Operator Seat Weight Adjustment Knob

B - Operator Seat Adjustment Lever

C - Rockshaft Rate-of-Drop Control Knob

D - Differential Lock Pedal

E - Dual Selective Control Valve (SCV) Lock Lever

F - Park Brake Lever

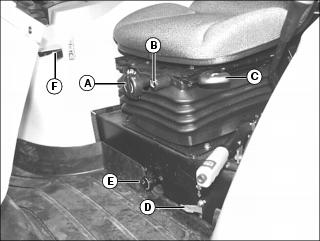

Tractor With Cab (Standard Seat)

MX35763

A - Operator Seat Weight Adjustment Knob

B - Seat Level Adjustment Knob

C - Operator Seat Adjustment Lever

D - Differential Lock Pedal

E - Rockshaft Rate-of-Drop Control Knob

F - Dual Selective Control Valve (SCV) Lock Lever

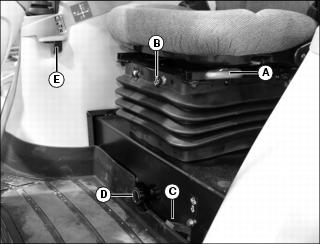

Tractor With Cab (Deluxe Seat)

MX22965

A - Operator Seat Adjustment Lever

B - Operator Seat Weight Adjustment Knob

C - Differential Lock Pedal

D - Rockshaft Rate-of-Drop Control Knob

E - Dual Selective Control Valve (SCV) Lock Lever

Air Temperature Controls

MX22964

A - Air Conditioning and Deicing Switch

B - Air Conditioning Temperature Control Knob

C - Heater Temperature Control Knob

D - Blower Speed Control Knob
