Operating - Controls

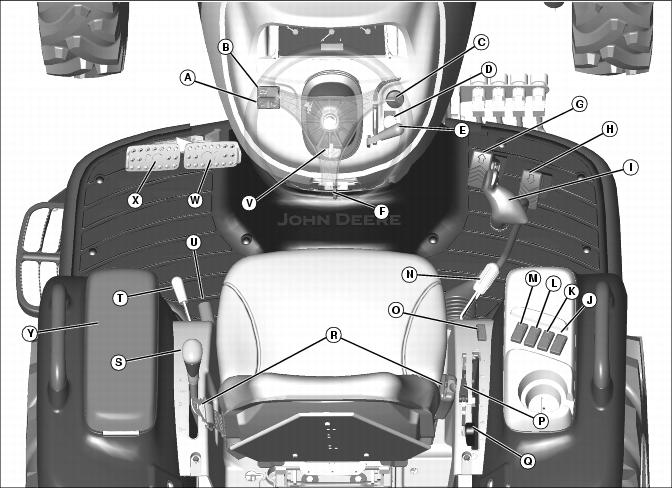

Operator Station Controls (eHydro No Cab)
Picture Note: All controls shown may not be installed on your machine.
D - Power-Take-Off (PTO) / Reverse Implement Option (RIO) Knob
E - Engine Speed Hand Throttle Lever
I - Dual Selective Control Valve (SCV) Lever
M - I Rear Outlet Activation Switch
O - Diverter II and III Rear Outlet Enable Switch
P - Rockshaft Adjustable Depth Stop Knob
S - Transmission Range Shift Lever
T - Mechanical Front Wheel Drive (MFWD) Knob
V - Tilt Steering Control Lever

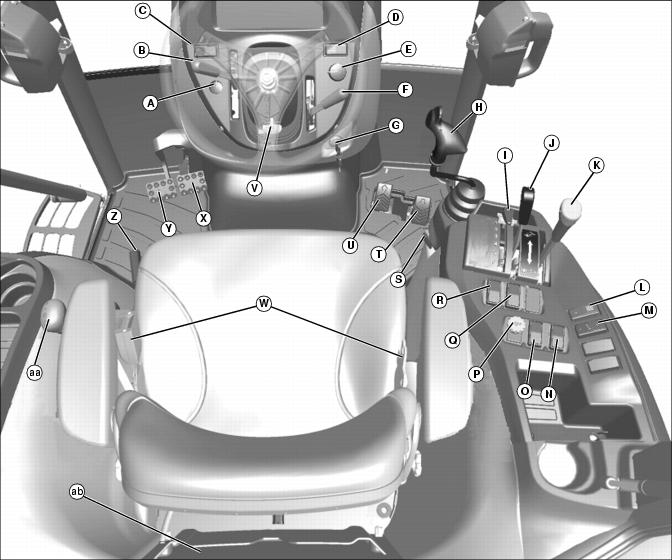

Operator Station Controls (eHydro With Cab)
Picture Note: All controls shown may not be installed on your machine.
A - Front Windshield Wiper/Washer Switch
B - Mechanical Front Wheel Drive (MFWD) Lever
F - Engine Speed Hand Throttle Lever
H - Dual Selective Control Valve (SCV) Lever
I - Rockshaft Adjustable Depth Stop Knob
K - Power-Take-Off (PTO) Selector Lever
O - Rear Windshield Washer Switch
P - Rear / Mid PTO Engagement / Reverse Implement Option (RIO) Knob
Q - Diverter II and III Rear Outlet Enable Switch
R - I Rear Outlet Activation Switch
V - Tilt Steering Control Lever
AA - Transmission Range Shift Lever
Operator Station Controls (PowrReverser)
Picture Note: All controls shown may not be installed on your machine.
E - Power-Take-Off (PTO) Engagement Knob
H - Dual Selective Control Valve (SCV) Lever
I - Engine Speed Foot Throttle
K - Diverter II and III Rear Outlet Enable Switch
L - I Rear Outlet Activation Switch
M - Rockshaft Adjustable Depth Stop Knob
O - Engine Speed Hand Throttle Lever
R - Transmission Range Shift Lever
T - Transmission Gear Shift Lever
U - Mechanical Front Wheel Drive (MFWD) Knob
V - Tilt Steering Control Lever
Operator Station Controls (Auto HST)
Picture Note: All controls shown may not be installed on your machine.
C - Forward-Neutral-Reverse Lever
E - Power-Take-Off (PTO) Engagement Knob
F - Engine Speed Hand Throttle Lever
I - Dual Selective Control Valve (SCV) Lever
K - Diverter II and III Rear Outlet Enable Switch
L - I Rear Outlet Activation Switch
P - Rockshaft Adjustable Depth Stop Knob
S - Transmission Range Shift Lever
T - Mechanical Front Wheel Drive (MFWD) Lever
W - Tilt Steering Control Lever
Floor Panel Controls
Tractor (No Cab)
A - Operator Seat Weight Adjustment Knob
B - Operator Seat Adjustment Lever
C - Rockshaft Rate-of-Drop Control Knob
E - Dual Selective Control Valve (SCV) Lock Lever

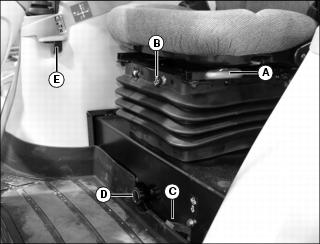

Tractor With Cab (Standard Seat)
A - Operator Seat Weight Adjustment Knob
B - Operator Seat Adjustment Lever
D - Rockshaft Rate-of-Drop Control Knob
E - Dual Selective Control Valve (SCV) Lock Lever

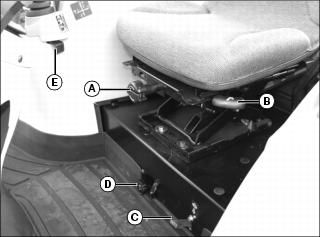

Tractor With Cab (Deluxe Seat)
A - Operator Seat Adjustment Lever
B - Operator Seat Weight Adjustment Knob
D - Rockshaft Rate-of-Drop Control Knob
E - Dual Selective Control Valve (SCV) Lock Lever

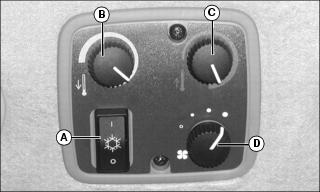

Air Temperature Controls
A - Air Conditioning and Deicing Switch
B - Air Conditioning Temperature Control Knob
