Controls

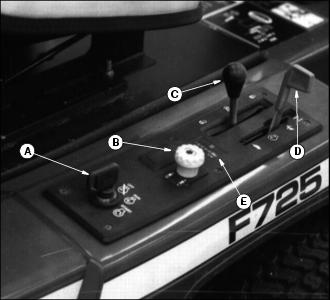

Panel Controls
B - PTO Switch - Engages the attachments.
C - Park Brake Lever - Engages the park brake.
D - Throttle Lever - Controls the engine speed.
E - Hour Meter - Records number of hours engine has run.

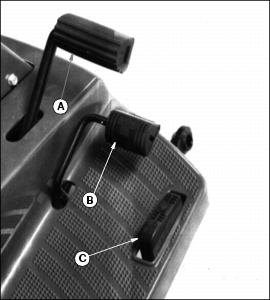

Foot Controls
A - Brake Pedal - Stops the machine.
B - Forward Travel Pedal - Starts the machine travel.
C - Reverse Travel Pedal - Backs the machine.
D - Differential Lock Pedal - Push for improved traction.

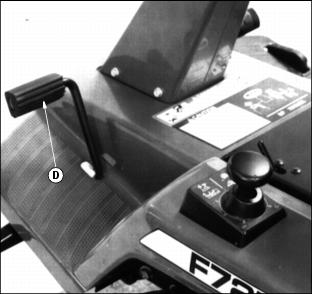

Weight Transfer Control
A - Weight Transfer Control - Improves Front Mower traction.
Indicator Lights
Seat Controls
A - Handle - Raises or lowers seat.
B - Seat Release Lever - Releases seat to perform services.
C - Seat Control Lever - Can slide seat forward or reverse.

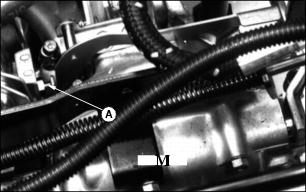

Free-Wheeling Lever
A - Free -Wheeling Lever - Allows you to move machine without engine running.
