Service


IMPORTANT: Avoid damage! Use recommended John Deere greases to avoid component failure and premature wear. The recommended John Deere greases are effective within an average air temperature range of -29 to 135 degrees C (-20 to 275 degrees F). If operating outside that temperature range, contact your Servicing dealer for a special-use grease.

• John Deere Multi-Purpose SD Polyurea Grease

• John Deere Multi-Purpose HD Lithium Complex Grease

• John Deere Moly High Temperature EP Grease

If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.

Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

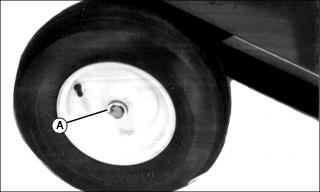

M74841

Lubricate each wheel bearing (A) with John Deere mulitpurpose grease or an equivalent.

NOTE: If tailgate latch does not slide over shoulder bolt, adjust shoulder bolt.

1. Unlatch tailgate latch.

NOTE: Tailgate does not have to be removed to adjust shoulder bolt. Tailgate is removed for photo clarity only.

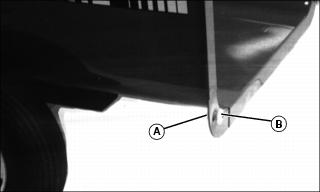

M74853

2. Loosen nut (A) slightly.

3. Move shoulder bolt (B) in slot until latch will catch on shoulder bolt.

4. Tighten nut.
