Specifications
Engine (GS25)
Engine Model Number
|
FC401V
|
Horsepower
|
9.3 kW (12.5 hp)
|
Displacement
|
404 cc (24.6 cu.in.)
|
Weight
|
124.7 Kg (275 lb)
|
Crankcase Capacity:
· Without Oil Filter
|
1.3 L (2.8 pt.) (44.8 oz)
|
Crankcase Capacity:
· With Oil Filter
|
1.6 L (3.3 pt.) (52.8 oz)
|
Engine (GS45)
Engine Model Number
|
FC420V
|
Horsepower
|
10.5 kW (14 hp)
|
Displacement
|
423 cc (25.8 cu.in.)
|
Weight
|
124.7 Kg (275 lb)
|
Crankcase Capacity:
· Without Oil Filter
|
1.3 L (2.8 pt.) (44.8 oz.)
|
Crankcase Capacity:
· With Oil Filter
|
1.6 L (3.3 pt.) (52.8 oz)
|
Engine (GS75)
Engine Model Number
|
FC540V
|
Horsepower
|
12.7kW (17 hp)
|
Displacement
|
535 cc (32.6 cu.in.)
|
Weight
|
136.8 Kg (302 lb)
|
Crankcase Capacity:
· Without Oil Filter
|
1.7 L (3.5 pt) (56 oz.)
|
Crankcase Capacity:
· With Oil Filter
|
1.9 L (4.0 pt) (64 oz.)
|
Engine (All Units)
Cylinders
|
One
|
Stroke/Cycle
|
Four
|
Lubrication
|
Full-Pressure
|
Oil Filter
|
Standard Single Element
|
Air Cleaner
|
Dual Stage
|
Spark Plug - Gap
|
0.64 mm (0.025 in.)
|
Spark Plug - Torque
|
20 N·m (15 lb-ft)
|
Fuel System
Fuel
|
See Fuel in the
Service-Miscellaneous section.
|
Fuel Filter
|
Single Stage, 60 Micron
|
Fuel Pump
|
Vacuum Operated - Diaphragm
|
Fuel Delivery
|
Gravity Feed to Fuel Pump
|
Fuel Tank - Capacity
|
19 L (5.0 gal.)
|
Drive Train
Transmission
|
Dana, 5-Speed with Reverse
|
Shift Mechanism
|
Enclosed Gear with Keys
|
Travel Speeds
Forward
|
2.9-9.6 km/h (1.8-5.9mph)
|
Reverse
|
1.2 km/h (0.75 mph)
|
Dimensions
Overall Height
|
1092 mm (43 in.)
|
Overall Length
|
2032 mm (80 in.)
|
Tires
Rear Drive- Size
|
13 x 6.50 - 6
|
Rear Drive- Air Pressure
|
100-200 kPa (15-28 psi)
|
Mower Deck (36-Inch)
Blades
|
2
|
Mower Blade Bolt Torque
|
122 N·m (90 lb-ft)
|
Cutting Heights
|
19-114 mm (3/4-4 1/2 in.)
|
Weight
|
83.9 Kg (185 lb)
|
Overall Width (chute up)
|
924 mm (36.5 in.)
|
Mower Deck (48-Inch)
Blades
|
3
|
Mower Blade Bolt Torque
|
68 N·m (50 lb-ft)
|
Cutting Heights
|
25-127 mm (1-5 in.)
|
Weight
|
83.5 Kg (184 lb)
|
Overall Width (chute up)
|
1308 mm (51.5 in.)
|
Mower Deck (54-Inch)
Blades
|
3
|
Mower Blade Bolt Torque
|
68 N·m (50 lb-ft)
|
Cutting Heights
|
25-127 mm (1-5 in.)
|
Weight
|
87.4 Kg (193 lb)
|
Overall Width (chute up)
|
1460 mm (57.5 in.)
|
Recommended Lubricants
Engine Oil
|
John Deere PLUS-4®
|
Grease
|
John Deere MOLY HIGH TEMPERATURE EP GREASE
|
|
John Deere HIGH TEMPERATURE EP GREASE
|
|
John Deere GREASE GARDTM
|
(Specifications and design subject to change without notice.)

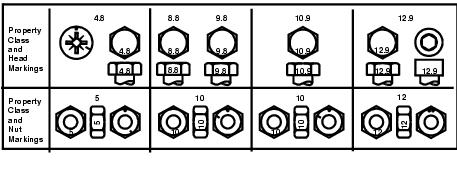

Metric Bolt and Cap Screw Torque Values
|
Class 4.8
|
Class 8.8 or 9.8
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
Size
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
M6
|
48
|
3.5
|
6
|
4.5
|
9
|
6.5
|
11
|
8.5
|
M8
|
12
|
8.5
|
15
|
11
|
22
|
16
|
28
|
20
|
M10
|
23
|
17
|
29
|
21
|
43
|
32
|
55
|
40
|
M12
|
40
|
29
|
50
|
37
|
75
|
55
|
95
|
70
|
M14
|
63
|
47
|
80
|
60
|
120
|
88
|
150
|
110
|
M16
|
100
|
73
|
125
|
92
|
190
|
140
|
240
|
175
|
M18
|
135
|
100
|
175
|
125
|
260
|
195
|
330
|
250
|
M20
|
190
|
140
|
240
|
180
|
375
|
275
|
475
|
350
|
M22
|
260
|
190
|
330
|
250
|
510
|
375
|
650
|
475
|
M24
|
330
|
250
|
425
|
310
|
650
|
475
|
825
|
600
|
M27
|
490
|
360
|
625
|
450
|
950
|
700
|
1200
|
875
|
M30
|
675
|
490
|
850
|
625
|
1300
|
950
|
1650
|
1200
|
M33
|
900
|
675
|
1150
|
850
|
1750
|
1300
|
2200
|
1650
|
M36
|
1150
|
850
|
1450
|
1075
|
2250
|
1650
|
2850
|
2100
|
Metric Bolt and Cap Screw Torque Values (Continued)
|
Class 10.9
|
Class 12.9
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
Size
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
M6
|
13
|
9.5
|
17
|
12
|
15
|
11.5
|
19
|
14.5
|
M8
|
32
|
24
|
40
|
30
|
37
|
28
|
47
|
35
|
M10
|
63
|
47
|
80
|
60
|
75
|
55
|
95
|
70
|
M12
|
110
|
80
|
140
|
105
|
130
|
95
|
165
|
120
|
M14
|
175
|
130
|
225
|
165
|
205
|
150
|
260
|
109
|
M16
|
275
|
200
|
350
|
225
|
320
|
240
|
400
|
300
|
M18
|
375
|
275
|
475
|
350
|
440
|
325
|
560
|
410
|
M20
|
530
|
400
|
675
|
500
|
625
|
460
|
800
|
580
|
M22
|
725
|
540
|
925
|
675
|
850
|
625
|
1075
|
800
|
M24
|
925
|
675
|
1150
|
850
|
1075
|
800
|
1350
|
1000
|
M27
|
1350
|
1000
|
1700
|
1250
|
1600
|
1150
|
2000
|
1500
|
M30
|
1850
|
1350
|
2300
|
1700
|
2150
|
1600
|
2700
|
2000
|
M33
|
2500
|
1850
|
3150
|
2350
|
2900
|
2150
|
3700
|
2750
|
M36
|
3200
|
2350
|
4050
|
3000
|
3750
|
2750
|
4750
|
3500
|
Metric Bolt and Cap Screw Torque Values (Continued)
DO NOT use these values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only and include a DO NOT use air powered wrenches.
Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.
Fasteners should be replaced with the same grade. Make sure fasteners threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.
When bolt and nut combination fasteners are used, torque values should be applied to the NUT instead of the bolt head.
Tighten toothed or serrated-type lock nuts to the full torque value.
a"Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated without any lubrication.

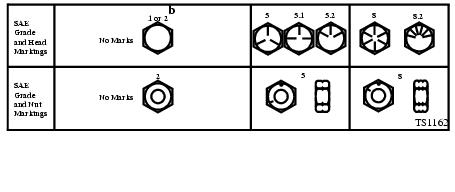

Unified Inch Bolt and Cap Screw Torque Values
|
Grade 1
|
Grade 2b
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
SIZE
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
1/4
|
3.7
|
2.8
|
4.7
|
3.5
|
6
|
4.5
|
7.5
|
5.5
|
5/16
|
7.7
|
5.5
|
10
|
7
|
12
|
9
|
15
|
11
|
3/8
|
14
|
10
|
17
|
13
|
22
|
16
|
27
|
20
|
7/16
|
22
|
16
|
28
|
20
|
35
|
26
|
44
|
32
|
1/2
|
33
|
25
|
42
|
31
|
53
|
39
|
67
|
50
|
9/16
|
48
|
36
|
60
|
45
|
75
|
56
|
95
|
70
|
5/8
|
67
|
50
|
85
|
62
|
105
|
78
|
135
|
100
|
3/4
|
120
|
87
|
150
|
110
|
190
|
140
|
240
|
175
|
7/8
|
190
|
140
|
240
|
175
|
190
|
140
|
240
|
175
|
1
|
290
|
210
|
360
|
270
|
290
|
210
|
360
|
270
|
1-1/8
|
470
|
300
|
510
|
375
|
470
|
300
|
510
|
375
|
1-1/4
|
570
|
425
|
725
|
530
|
570
|
425
|
725
|
530
|
1-3/8
|
750
|
550
|
950
|
700
|
750
|
550
|
950
|
700
|
1-1/2
|
1000
|
725
|
1250
|
925
|
990
|
725
|
1250
|
930
|

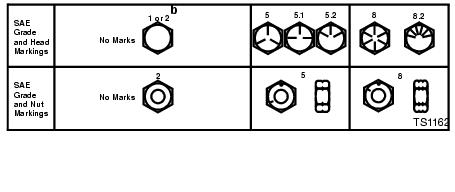

Unified Inch Bolt and Cap Screw Torque Values (Continued)
|
Grade 5, 5.1 or 5.2
|
Grade 8 or 8.2
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
SIZE
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
1/4
|
9.5
|
7
|
12
|
9
|
13.5
|
10
|
17
|
12.5
|
5/16
|
20
|
15
|
25
|
18
|
28
|
21
|
35
|
26
|
3/8
|
35
|
26
|
44
|
33
|
50
|
36
|
63
|
46
|
7/16
|
55
|
41
|
70
|
52
|
80
|
58
|
100
|
75
|
1/2
|
85
|
63
|
110
|
80
|
120
|
90
|
150
|
115
|
9/16
|
125
|
90
|
155
|
115
|
175
|
130
|
225
|
160
|
5/8
|
170
|
125
|
215
|
160
|
215
|
160
|
300
|
225
|
3/4
|
300
|
225
|
375
|
280
|
425
|
310
|
550
|
400
|
7/8
|
490
|
360
|
625
|
450
|
700
|
500
|
875
|
650
|
1
|
725
|
540
|
925
|
675
|
1050
|
750
|
1300
|
975
|
1-1/8
|
900
|
675
|
1150
|
850
|
1450
|
1075
|
1850
|
1350
|
1-1/4
|
1300
|
950
|
1650
|
1200
|
2050
|
1500
|
2600
|
1950
|
1-3/8
|
1700
|
1250
|
2150
|
1550
|
2700
|
2000
|
3400
|
2550
|
1-1/2
|
2250
|
1650
|
2850
|
2100
|
3600
|
2650
|
4550
|
3350
|
Unified Inch Bolt and Cap Screw Torque Values (Continued)
DO NOT use these values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only and include a DO NOT use air powered wrenches.
Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.
Fasteners should be replaced with the same grade. Make sure fastener threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.
Tighten toothed or serrated-type lock nuts to the full torque value.
a "Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated without any lubrication.
b "Grade 2" applies for hex cap screws (not hex bolts) up to 152 mm (6-in.) long. "Grade 1" applies for hex cap screws over 152 mm (6-in.) long, and for all other types of bolts and screws of any length.
|
