Remove Mower
Park Vehicle Safely
· Stop vehicle on a level surface, not on a slope.
· Before you leave the operator's seat, wait for engine and all moving parts STOP.
Removing Mower (GX85)
1. Pull PTO lever completely rearward.
2. Put mower in the highest setting: Setting 4.
4. Remove carriage bolt (B) and belt guides (C).
5. Remove mower belt (D) from lower part of engine sheave (E).
6. Put mower in the lowest setting: Setting 1.

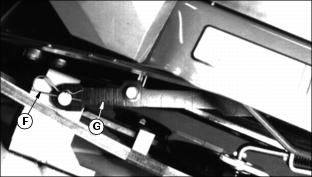

7. Remove spring locking pin (F) from rear draft link (G).
8. Remove rear draft link from mower.
9. Remove spring locking pin and washer (H).
10. Remove washer and PTO engagement rod (I).
11. Remove spring locking pins and drilled pins (J).
12. Remove front draft links (K).
13. Turn front wheels fully to the right.
14. Pull mower from under left side of riding mower.
Removing Mower (SX85)
1. Pull PTO lever completely rearward.
2. Put mower in highest setting: Setting 4.
3. Loosen nut (A) and move rear belt guide (B) away from engine sheave.
4. Remove nut (C) and front belt guide (D).
5. Remove mower belt (E) from engine sheave.
6. Put mower in lowest setting: Setting 1.
7. Remove spring locking pin (F) from rear draft link (G).
8. Remove rear draft link from mower.
9. Remove spring locking pin and washer (H).
10. Remove washer and PTO engagement rod (I).
11. Remove spring locking pins and drilled pins (K).
12. Drop down front draft links (J).
