Controls

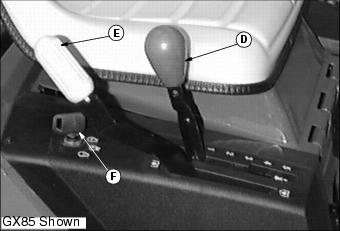

Console Controls

M86463

M72626

A - Throttle Lever - Controls engine speed

B - Mower Lift Lever - Sets cutting height

C - Mower Height Indicator (Old SX85 Model Only) Indicates mower height

D - Shift Lever - Changes ground speed

E - PTO Lever - Engages mower deck

F - Key - Starts engine

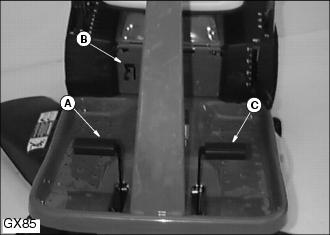

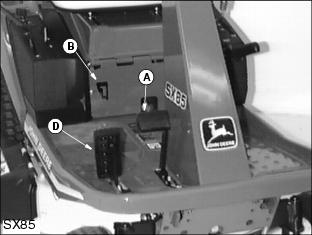

Foot Controls and Park Brake

M86466

M88497

A - Brake Pedal - Stops machine

B - Park Brake Lever - Engages park brake

C - Clutch - Disengages engine drive

D - Accelerator - Engages machine travel

Miscellaneous Controls

M86468

A - Fuel Shut-Off
