Assembly - Lawn Roller
Identify Box of Parts

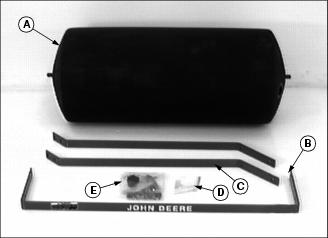

Box of Parts
Bag of Parts
Install Scraper Frame Bar

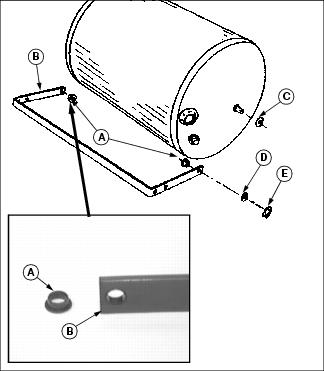

1. Insert a 5/8 in. nylon bearing (A), from inside out, into round hole at each end of scraper frame bar (B).

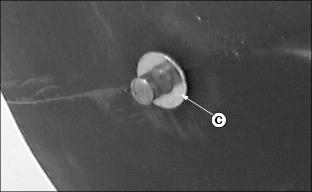

2. Remove the vinyl caps that are over ends of roller assembly axle and slide a 5/8 in. flat washer (C) onto each end.
3. Slide one end of the scraper frame bar on one end of roller assembly and then spring the other end of scraper frame bar open and slide it over the opposite end of roller axle as shown.

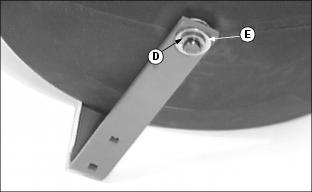

4. Install another 5/8 in. flat washer (D) over each end of axle and secure with a 5/8 in. snap ring (E).
Install Frame Extension Bars

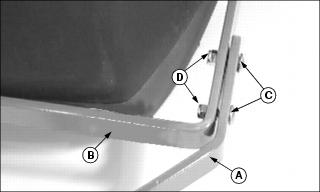

1. Attach short end of each frame extension bar (A) to scraper frame bar (B) and fasten with two 5/16 x 1 in. hex bolts (C) and two 5/16-18 in. nylock nuts (D) on each side. Frame extension bars will meet at center. Hand tighten only.

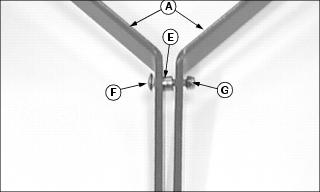

2. Position spacer (E) between frame extension bars (A), using rear set of holes, and secure with a 5/16 x 1-1/2 in. hex bolt (F) and 5/16 in. nylock nut (G). Hand tighten only.

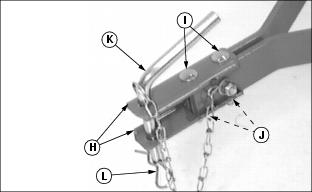

3. Assemble two clevis straps (H) to front of tow bars using two 5/16 x 2-1/4 in. carriage bolts (I) and two locknuts (J). Hand tighten only.
4. Slide clevis assembly forward until front carriage bolt is within 6 mm (1/4 in.) from the end of tow bars.
5. Install hitch pin (K) in clevis and fasten with spring locking pin (L) through chain loop.

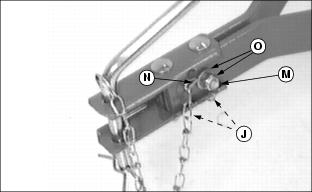

6. Install 5/16 x 1-1/2 in. cross hex bolt (M). Place chain hook (N) around bolt and secure with 5/16 in. flat washer and locknut (O).
7. Align tow bars and clevis. Tighten nuts (J) completely.
8. Tighten nylock nut (M) while holding chain hook forward and centered between clevis halves.
