Removing

Removing Tow-Behind Attachment

1. Park tractor safely. (See Parking Safely in the SAFETY section.)

c CAUTION: Avoid injury! Do not attempt to disconnect attachment from tractor with weight or spreading material remaining in the unit. Attachment could become unstable causing injury.

2. Remove all weight and/or material from attachment.

M56880

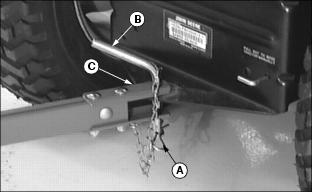

3. Remove spring locking pin (A).

4. Remove hitch pin (B).

5. Move attachment off tractor hitch plate.

6. Install hitch pin and spring locking pin to clevis (C) for storage.
