Installing the Tiller


Ballasting Requirements

All tractors require one of the following be installed when using the tiller:

• A minimum of two front weights when tilling level ground.

• Four front weights when tilling on slopes.

Use the following recommendations to help improve traction:

IMPORTANT: Avoid damage! Do not use tire chains on newer GT, GX models that are in combination with tire sizes 24x12-12 and the tiller, as damage to tiller frame can occur.


• Install tire chains on turf tires or install bar tires on the tractor.

• Install three rear weights.

Ballast weights can be purchased from your John Deere Dealer. See your machine operator’s manual for further information.

Set the Depth Control Knob


M73539

Picture Note: GT242, GT262, and GT275 Shown

Turn the depth control knob (A) to the “0” setting.

Move Manual Lift Lever (Models 240, 245, 260, 265, 285, GT225, GT235, GT242, GT262, and GT275)


M41184

Picture Note: 200 Series Shown

1. Push and hold down button (A).


M73540

Picture Note: GT Series Shown

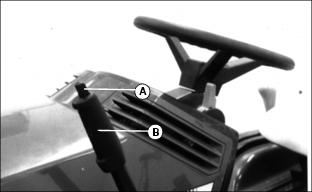

2. Push lever (B) all the way forward to the lock-out position.

3. Release button.

Move Hydraulic Lift Lever (Models 320, 325, 335, 345 and 355)


M73546

Picture Note: Model 320


M71987

Picture Note: Models 325, 335, 345 and 355

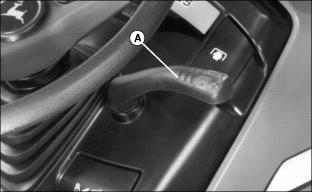

Push lift lever (A) forward to rotate lift shaft downward for ease of tiller installation.

Move Lift Pedal (Foot Lift Models)

c CAUTION: Avoid injury! Lift pedal is spring-assisted and may have unexpected movement.

Lock lift pedal when installing or removing attachment.


MX30484

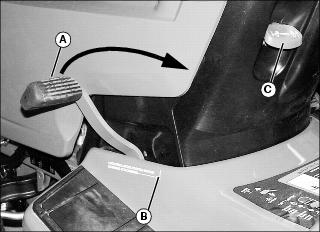

1. Pull back lift pedal (A) by hand to put tiller in the lower/down position (B). Pull up lock lever (C) to lock attachment in the lowered position.

Release Spring Tension (Models 240, 245, 260, 265, and 285)

c CAUTION: Avoid injury! Release the lift spring tension before installing the tiller.


M41146

Turn crank (A) counter-clockwise to release spring tension.

Put Tiller in Transport Position


M97636

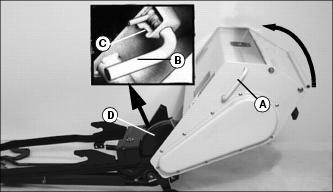

1. Grasp handle (A) and pull slightly upward on tiller to relieve tension on transport lever (B). Pull out and rotate the transport lever to engage locking pin in slot (C).

2. Pivot tiller up and forward as far as it will go.

3. Rotate transport lever (B) until locking pin disengages from slot (C). Allow transport lever to lock into hole in shield (D).

Put Wheels in Down Position


M97637

1. Pull and hold out wheel locking pin (A).

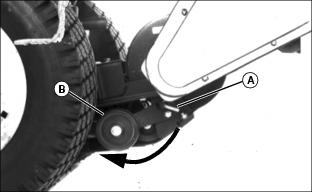

2. Swing wheel assembly (B) into down position. Make sure locking pin engages to lock wheel in down position. Repeat for other wheel assembly.

Install Tiller on Rear Tractor Frame


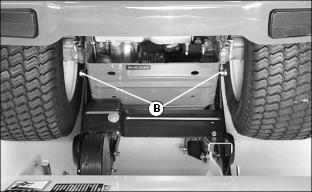

M41781


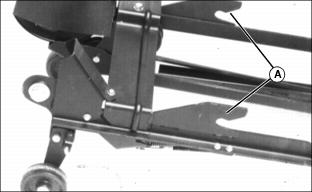

M97638

1. Place tiller frame hooks (A) over spacers (B) in rear tractor frame.

Engage the Support Rod

c CAUTION: Avoid injury! Hold attaching assist lever securely until support rod is in place. Keep hands clear of pinch areas between tiller and tractor frame.


M41744

1. Open tiller clip (A) at both sides of tiller.

2. Push and hold down attaching assist lever (B).

3. Pivot support rod (C) upward so loop in rod is under stud in tractor frame.

4. Slowly release downward pressure on attaching assist lever (B).

Lock Wheels in Up Position


M41746

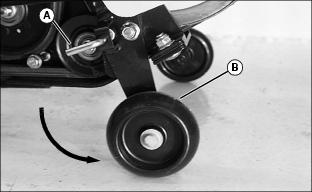

1. Pull and hold out wheel locking pin (A).

2. Swing wheel assembly (B) into up position. Make sure locking pin engages to lock wheel in up position. Repeat for other wheel assembly.

Pivot the Support Rod Down

c CAUTION: Avoid injury! Hold attaching assist lever securely until tiller frame clips are seated against mounting pins. Keep hands clear of pinch areas between tiller and tractor frame.


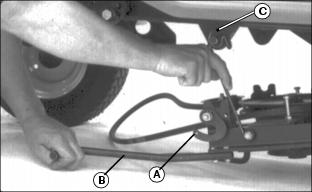

M41744

1. Maintain downward pressure on attaching assist lever (A).

2. Pivot support rod (B) down.

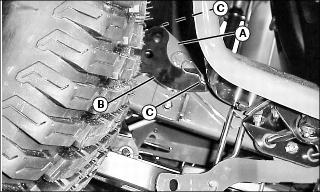

3. Slowly release downward pressure on attaching assist lever until tiller frame clips (C) are resting against mounting pins (D).

Fasten Frame and Install Belt


M41750

1. Close clip latch (A) around mounting pin at each side of tractor.

2. Install spring locking pin (B) through small hole in each clip latch to prevent latches from opening.

IMPORTANT: Avoid damage! Do not install more washers than needed or locknut will not be fully threaded onto pin (D). Locknut could loosen and fall off.


NOTE: Additional spacer washers are not included. If needed, obtain washers locally.


M74556

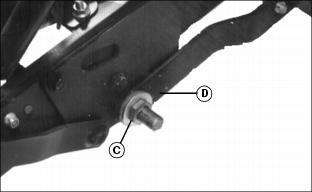

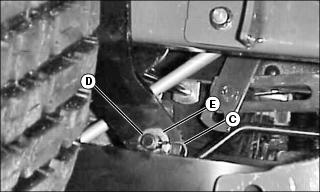

3. Move tiller frame from side to side and check for looseness. If side play is excessive, install additional 1.2 mm (3/16 in.) washers as needed between pin shoulder (C) and draft arm (D) to remove side play.


M74613

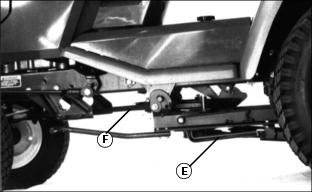

4. Swing belt tensioning lever (E) toward front of tractor to loosen the belt tension.

5. Install belt (F) on tractor drive sheave.

6. Swing belt tensioning lever (E) toward rear of tractor to tighten belt.

Fasten Lift Rod to Lift Link (Models GT242, GT262, and GT275)

1. Lower tiller from the transport position to the operating position.

2. Place manual lift lever in the lock-out position.


M99282

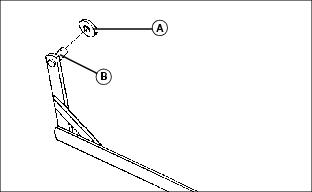

3. Install M13 washer (A) on lift rod pin (B).


M73537

Picture Note: Right rear tire has been removed for clarity.

4. Place lift rod pin (B) through hole in lift link (C). The M13 washer should be against the inside of the lift link.

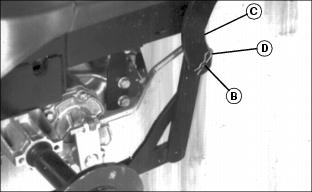

5. Secure lift rod to lift link with spring locking pin (D).

Install Lift Arm Strap and Lift Rod (Models GT225 and GT235)

1. Lower tiller from the transport position to the operating position.

2. Place manual lift lever in the lock-out position.


M99280

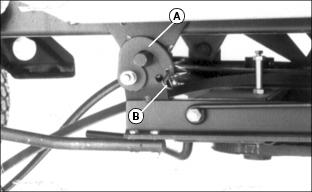

3. Locate rear lift shaft assembly (A) under right rear fender.


M99281

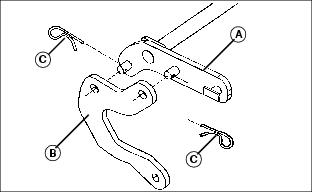

4. Position lift arm strap (B) as shown and install it onto lift shaft (A) studs.

5. Install spring locking pins (C) to secure lift strap to lift shaft assembly.


M99283

6. Place lift rod (D) from tiller through lower hole in lift arm strap.

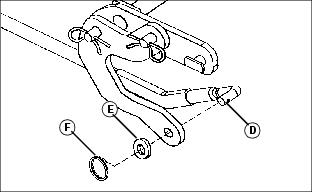

7. Install M13 washer (E) and secure with locking ring (F).

Install Lift Arm and Lift Rod (Models with Foot Lift)

1. Lower tiller from transport position to operating position.

2. Place lift pedal in the lockout position.


MX31801

3. Locate the lift shaft assembly (A) under right rear fender.

4. Install lift arm (B) onto lift shaft assembly.

5. Install spring locking pins (C) to secure lift arm to lift shaft assembly.


MX31802

6. Place lift rod (D) from tiller through lower hole in lift arm.

7. Install M13 washer (E) and secure with spring locking pin (C).

Fasten Plate to Lift Link (Models 240, 245, 260, 265, 285, 320, 325, 335, 345 and 355)

NOTE: Arrow on plate should point toward front of tractor.


M41745

Fasten front lift link plate (A) to lift link (B) with drilled pin (C) and spring locking pin (D).

Adjust Tiller Lift Height

1. Raise tiller as high as it will go.

2. Measure distance between lowest tine and ground. Distance should be 75 mm (3 in.) to allow a maximum 150 mm (6 in.) tilling depth and enough ground clearance for turns on the ends of the tilling area. If distance is not correct, see Adjusting Tilling Depth in the Operating section.

3. Models 240, 245, 260, 265, and 285 - Adjust the lift spring tension. (See Adjusting Lift Spring in the OPERATING section.)
