Controls

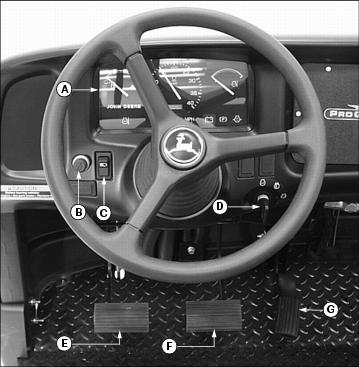

Dash and Foot Controls

MX1673

A - Instrument Panel

B - Horn

C - Light Switch

D - Key Switch

E - Clutch Pedal

F - Brake Pedal

G - Accelerator Pedal

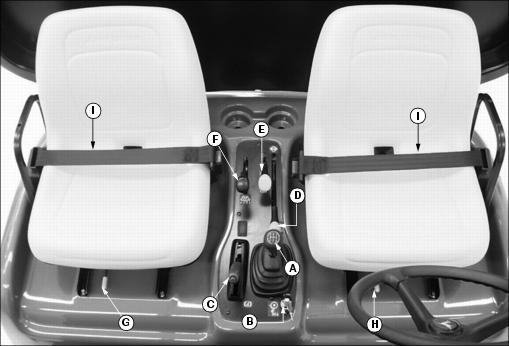

Console and Miscellaneous Controls

MX1703b

A - Gear Shift Lever

B - 5th Gear Lockout Switch

C - Park Brake Lever

D - Differential Lock Lever

E - Hydraulic PTO Lever (Optional)

F - Lift Cylinder Lever

G - Passenger Seat Adjustment Lever

H - Operator Seat Adjustment Lever

I - Seat Belt
