Storage

c CAUTION: Avoid injury! Make sure transport latch is in locked position. Make sure dump latch lever is latched.


IMPORTANT: Avoid damage! Wash and dry cart before storing. Contaminants and moisture may damage cover material.

• Wash and dry cart.

• Lock transport latch.

• Engage dump latch lever.

• Put cart on level ground in a sheltered, dry place.

• Make sure Quik-Tatch hitch bracket is on ground.

NOTE: Install locking rings back on studs for storage.

M63459

1. Remove cover from cart.

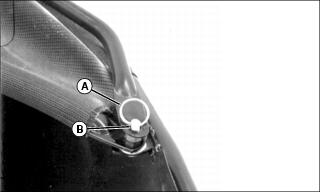

2. Remove locking rings (A) from studs (B) located on both rear lower corners of cover.

M78494

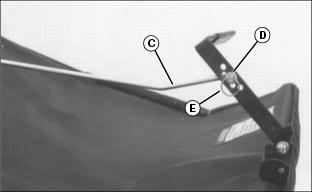

3. Remove locking ring (E) and washer (D) from cover release lever.

4. Remove cover rod (C) from cover release lever.

M63431

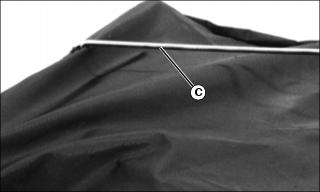

5. Remove cover latch rod (C) (end with two bends) from cover.

6. Put cover rod back in cover release lever.

7. Install washer and locking ring back on cover rod for storage.

8. Collapse cover.
