Removing

Before Unhitching Cart From Tractor

• Unload cart.

• Keep feet from under drawbar and cart.

• Make sure transport latch is in locked position.

• Stop cart on level ground.

• Stop engine.

• Lock park brake.

• Block cart wheels.

Removing POWER FLOW Chute

1. Park machine safely. (See Parking Safely in the Safety section.)

2. Unload cart.

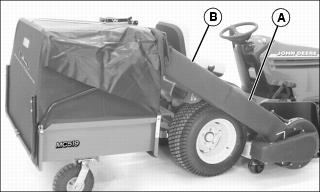

MX10480

3. Disconnect lower end of POWER FLOW chute (A) from POWER FLOW.

4. Remove upper end of POWER FLOW chute from cart chute (B).

Disconnecting Cable Assembly from Tractor Hitch Plate

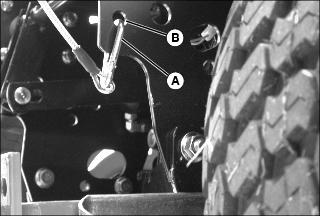

MX10482

Picture Note: Right Side View

Unhook spring snap link (A) at end of cable assembly from hole in tractor hitch plate (B).

Unhitching Cart from Tractor

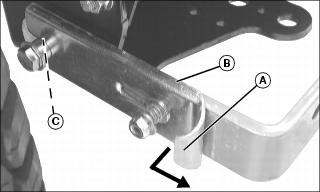

MX10479

1. On both sides of Quik-Tatch hitch, grasp tab (A) and pull side plate (B) out and slide to rear to expose hook (C).

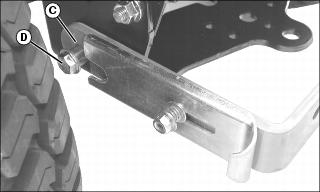

MX10478

2. Lift each hook (C) over hitching hardware (D).
