Installing

Preparing the Machine

NOTE: Read and complete the assembly procedures if installing the attachment for the first time.

Before installing attachment, remove mower from machine. (See Removing and Storing Mower section in machine operator’s manual.)

Machine Setup

• Check tire pressure of machine before operating machine.

Installing Ballast

c CAUTION: Avoid injury! Machine can become unstable when operating with attachment. Ballast is required when the attachment is installed. When the attachment is removed, also remove any ballast that was added to the machine. Use only attachments and accessories recommended by the manufacturer.

Installing the recommended rear ballast will help counter-balance the weight of the snowblower. Remove ballast when the snowblower is removed. This will ensure proper operation of the machine when not removing snow.

Recommended Ballast:

NOTE: Rear Weight Bracket Kit, 4-Wheel Steer (BM24011) is required for rear weight use on 4-Wheel Steer models.

• Four 19 kg (42 lb) Rear Suitcase Weights (R66949).

Remove Mower

1. Remove mower deck. (See Removing and Storing Mower section in machine operator’s manual.)

2. Remove mower deck drive belt and store with mower deck.

Installing Front Lift Assembly

MX36962

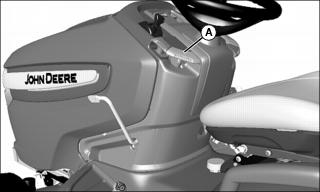

1. Lower attachment linkage:

• Push down on lever (A).

2. Park machine safely. (See Parking Safely in the SAFETY section.)

MX37793

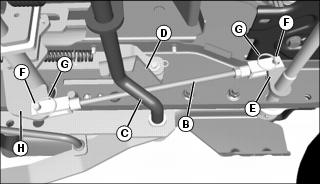

Picture Note: View from under right side of machine.

3. Raise shorter inner lift rod (B) into position between brake rod (C) and bracket (D), and install front yoke of lift rod to ear (E) of rockshaft. Secure with M10x28 drilled pin (F), installed from outside in, and locking ring (G).

4. Install rear yoke of shorter inner lift rod to ear (H) of shaft. Secure with M10x28 drilled pin (F) and locking ring (G).

MX35644

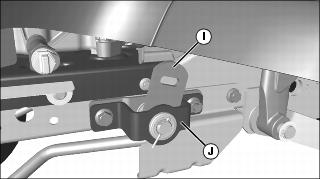

5. Verify that outside rockshaft bracket (I) does not interfere with the mounting plate (J):

• Check for interference, with attachment linkage in lower/down position.

• Pull up on lever (A), and check for interference with attachment in raised/up position.

• If there is interference, disconnect rear end of inner rod, and rotate yoke to shorten or lengthen rod for proper fit. Install inner lift rod and repeat as necessary.

MX35658

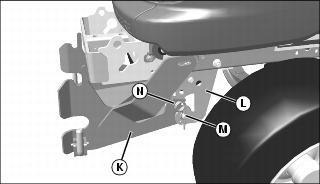

6. Align hole in front attachment hitch (K) with hole in front draft assembly (L) and install front draft pin (M). Secure with large M4.5 spring locking pin (N).

MX35659

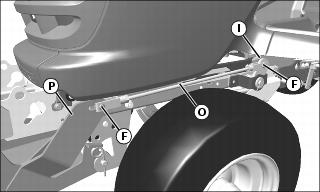

7. Install rear yoke of longer outer lift rod (O) onto rockshaft bracket (I) with M10x28 drilled pin (F) and locking ring.

8. Install front yoke of longer outer lift rod onto lift lever bracket (P) with M10x28 drilled pin (F) and locking ring.

Installing Snowblower

MX36962

1. Lower attachment hitch:

• Push down on lever(A).

MX36898

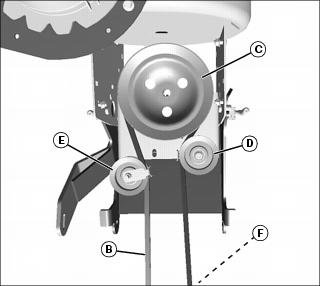

Picture Note: Top view with gearbox not shown for clarity.

2. Check snow blower drive belt (B) for wear and proper routing:

• Belt is routed around gearbox drive sheave (C), and inside of belt guards on idler sheave (D) and tensioning sheave (E), then to machine drive sheave (F).

• The tensioning spring connects to the tensioning sheave pivot arm, under the sheave.

• Belt must be installed on gearbox drive sheave from below, if it requires replacement.

MX36899

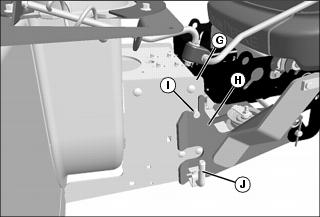

3. Align blower support (G) with front attachment hitch (H).

4. Secure blower support pins (I) onto top slots in front attachment hitch.

5. Pull L-pins (J), on each side, outward and lower blower support bracket. Release L-pins and lock blower support in place.

MX37796

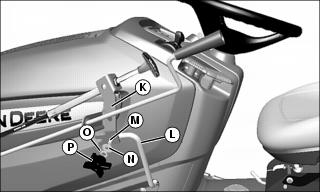

6. Align the slot at the bottom of the chute and spout bracket (K) over the locating screw at the outside of the rotation handle bracket (L).

7. Insert an M8x20 carriage bolt (M), from the inside, through the square mounting hole in bracket (L), and the mounting hole at the bottom of bracket (K). Secure with an M8.4 washer (N), 3/8 in. lock washer (O), and knob (P).

c CAUTION: Avoid injury! Attachment can lower rapidly. Attachment is heavy and can crush. Keep bystanders, especially children, away when lowering attachment. Support raised attachment with a mechanical stop or lower completely to the ground before servicing.

8. Install drive belt on machine drive sheave:

a. Raise and block-up snowblower.

b. Pull on spring-loaded tensioning sheave arm to remove tension on belt.

c. Install belt on machine drive sheave (PTO clutch).

d. Release tensioning sheave arm.

e. Raise snowblower, remove support, and lower snowblower to ground.

MX37797

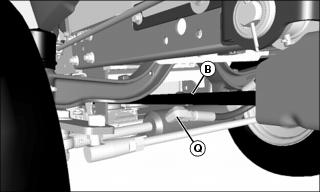

9. Check for interference between drive belt (B) and the left side fitting (Q) on the machine steering cylinder. If necessary, rotate fitting down approximately ten degrees to eliminate interference and premature belt wear.

10. Raise snowblower to test lift adjustment:

• Pull up on lever (A) to raise blower.

• Adjust lift height and check for any binding of lift linkage.

Check Tire Pressure

NOTE: See your Machine Operator’s Manual for correct tire pressure.

Check tire pressure with an accurate gauge.

Add or remove air, if necessary.
