Service Lubrication
Grease
The following greases are preferred:
· John Deere Multi-Purpose SD Polyurea Grease
· John Deere Multi-Purpose HD Lithium Complex Grease
· John Deere Moly High Temperature EP Grease
If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.
Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

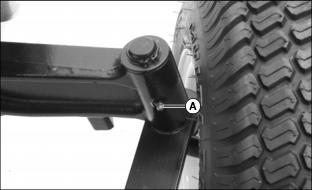

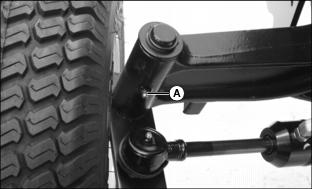

Lubricating Rear Steering Pivot (AWS Model)

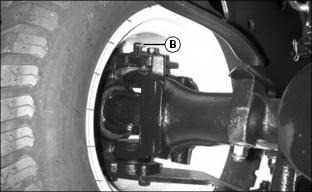

Lubricate rear wheel pivot (B) on both ends of rear axle.

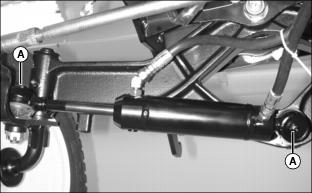

Lubricating Steering Cylinder Ball Joints
Picture Note: AWS model shown.
