Service Lubrication

Grease

IMPORTANT: Avoid damage! Use recommended John Deere greases to avoid component failure and premature wear.

The recommended John Deere greases are effective within an average air temperature range of -29 to 135 degrees C (-20 to 275 degrees F).

If operating outside that temperature range, contact your Servicing dealer for a special-use grease.


The following greases are preferred:

· John Deere Multi-Purpose SD Polyurea Grease

· John Deere Multi-Purpose HD Lithium Complex Grease

· John Deere Moly High Temperature EP Grease

If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.

Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

Lubricating Machine Grease Fittings


MX13580, MX13581

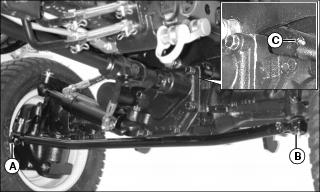

A - Left Tie Rod End

B - Right Tie Rod End

C - Front Axle


MX13579

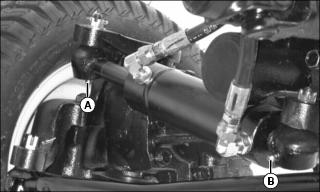

A - Left Steering Cylinder Ball Joint

B - Right Steering Cylinder Ball Joint


MX13583, MX13584, MX13585

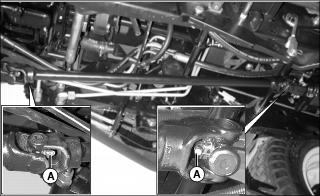

A - Four-Wheel Drive Shaft Ends


MX13586

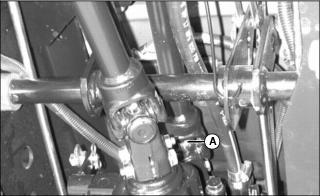

A - Engine Driveshaft - Transmission End
