Assembly

Identify Parts

NOTE: If application requires an optional Power Flow Attachment Kit, the assembly instructions and a list of parts will be included with the kit.

MX10054, MX10038, MX10751


Qty.	Description
1	POWER FLOW (A)
1	Rear Baffle Plate (B)
1	Double Sheave (C)
1	Bent Pin (Long) (D)
1	Deck Belt Shield (E)
1	Formed Front Mounting Bracket (F)
1	Bent Pin (Short)
1	Deck Belt Shield Spring
1	Gage Wheel Adjuster Pin
1	Spring Pin
2	Bolt, M8x16
2	Bolt, M8x25
2	Flanged Bolt, M6x25
2	Flanged Locknut, M6
2	Flanged Locknut, M8
4	Locknut, M8

Modify Mower Deck Belt Shield

MX10040

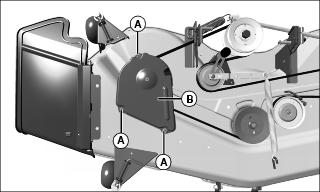

1. Remove three flanged locknuts (A).

2. Remove deck belt shield (B).

MX10041

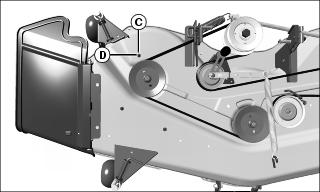

3. Remove retainer (C) and bolt (D).

MX10042

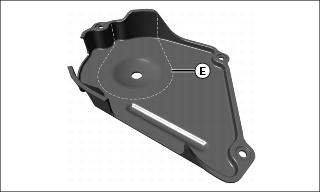

4. Locate embossed cutout line (E) on bottom of deck belt shield.

5. Cut out embossed area.

Install Double Sheave

1. Disengage PTO.

MX10045

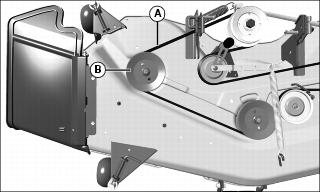

2. Remove mower deck belt (A) from right spindle sheave (B). Inspect and replace belt if needed.

c CAUTION: Avoid injury! Mower blades are sharp. Always wear gloves when handling mower blades or working near blades.

MX10046

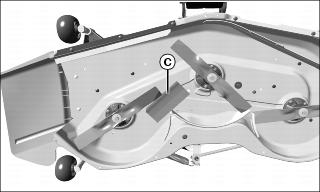

3. Wedge a block of wood (C) between outer edge of blade and deck opening to prevent blade from turning.

NOTE: Support the blade and spindle shaft assembly. After the flanged spindle nut is removed, the entire blade and spindle shaft assembly is free to fall out.

MX10035, MX10047

4. With blade held stationary against wood block, remove and keep flanged spindle nut (D). Remove right spindle sheave (E).


IMPORTANT: Avoid damage! Tightening flanged spindle nut against blade cap screw may damage cap screw and spindle threads. Use a pipe wrench or other suitable device to hold double sheave stationary while tightening flanged spindle nut.

MX10032

5. Install double sheave (F) on spindle shaft with large pulley against deck.

6. With blade held stationary against wood block, install flanged spindle nut (D) and tighten to 163 N•m (120 lb-ft).

MX10048

7. Install original mower deck belt (A) in lower groove of double sheave.

MX10049

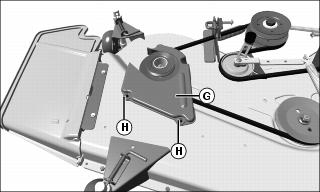

8. Install modified mower deck belt shield (G) on two bolts (H). Install two original flanged locknuts.

9. Safely unblock and lower mower deck to ground.

10. Clean and store right spindle sheave for use if POWER FLOW and double sheave are removed.

Modify Shields

MX10748

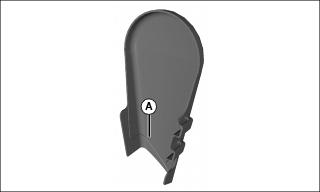

1. Locate embossed cut line (A) on deck belt shield. Cut along line and remove section.

Install Rear Baffle Plate

Prepare Mower Deck

c CAUTION: Avoid injury! Mower blades are sharp. Always wear gloves when handling mower blades or working near blades.

1. Turn mower deck over and clean underside.

Install Plate

MX10039

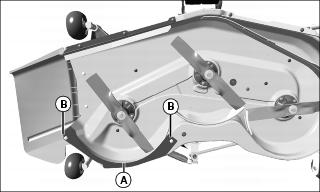

1. Install rear baffle plate (A) with two M8x16 bolts (B) and M8 locknuts. Tighten to 10-30 N•m (8-22 lb-ft).

Install Front Mounting Bracket

NOTE: Remove wheel for easy installation.

MX10752

1. Install bent front mounting bracket (A) on mower deck right front gage wheel bracket with two M8x25 bolts and M8 flanged locknuts (B). Tighten to 20-40 N•m (15-29 lb-ft).

Assemble and Install Blower Belt Shield

M17840

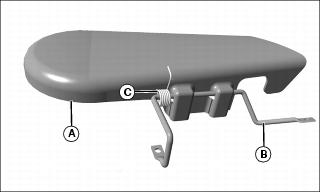

1. Assemble blower belt shield (A), wire form support shield rod (B), and hinge spring (C).

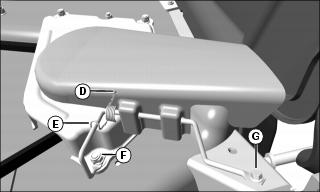

2. Install straight end of hinge spring through blower belt shield hole (D). Loop the curved end of hinge spring (E) over the wire form shield support rod.

M17841

3. Place M6 Washer on M6x25 flanged bolt and install through mower deck and mower deck belt shield from beneath mower deck. Install M6 washer through bolt on top of mower deck belt shield. Place slotted end of wire form shield support rod through bolt then install M6 flanged locknut (F).

4. Install M6x25 flanged bolt (G) through slotted end of wire form shield support rod into right rear gage wheel bracket. Install M6 washer and M6 flanged locknut on bolt from beneath deck.

5. Tighten locknuts to 12-18 N•m (9-14 lb-ft).

6. Check for proper operation and alignment of blower belt shield and hinge spring.

7. Loosen locknuts and reposition blower belt shield and hinge spring for alignment if needed.
