Service Lubrication
Grease
IMPORTANT: Avoid damage! Use recommended John Deere greases to avoid component failure and premature wear.
The recommended John Deere greases are effective within an average air temperature range of -29 to 135 degrees C (-20 to 275 degrees F).
If operating outside that temperature range, contact your Servicing dealer for a special-use grease.
|
The following greases are preferred:
· John Deere Multi-Purpose SD Polyurea Grease
· John Deere Multi-Purpose HD Lithium Complex Grease
If not using any of the preferred greases, be sure to use a general all-purpose grease with an NLGI grade No.2 rating.
Wet or high speed conditions may require use of a special-use grease. Contact your Servicing dealer for information.

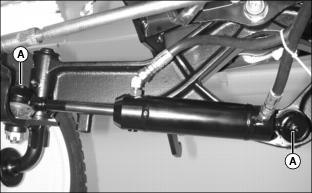

Lubricating Steering Cylinder Ball Joints
MX15409
Picture Note: AWS model shown.
Lubricate ball joints (A).

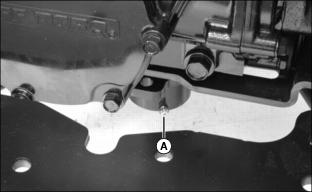

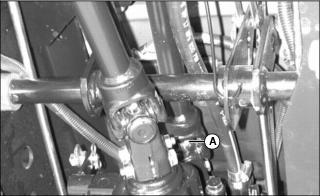

Lubricating Driveshaft
MX13586
A - Engine Driveshaft - Transmission End
Lubricating Front Axle (X495)
MX15406

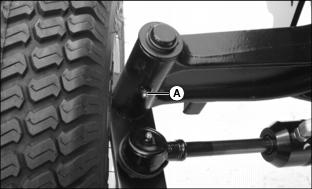

A - Left King Pin
MX15407

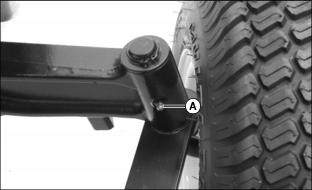

A - Right King Pin
MX15408

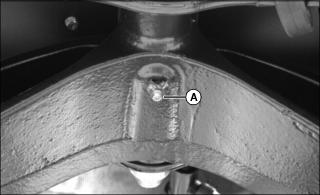

A - Axle Center Pivot
Lubricating Machine Grease Fittings (X595)

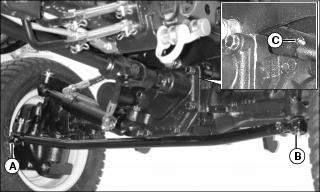

MX13580, MX13581
A - Left Tie Rod End
B - Right Tie Rod End
C - Front Axle
MX13583, MX13584, MX13585

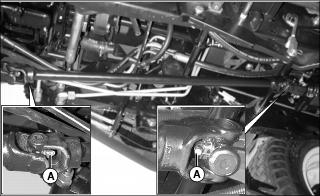

A - Four-Wheel Drive Shaft Ends
Lubricating Rear Steering Pivot (AWS Model)
MX15404
Lubricate joint (A).
MX15405

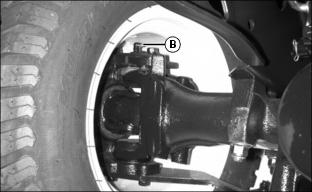

Lubricate rear wheel pivot (B) on both ends of rear axle.
|
