Assembly


IMPORTANT: Avoid damage! Broom uses two different shear bolt lengths and diameters. Use of wrong shear bolt can damage the gearbox.

MX21779

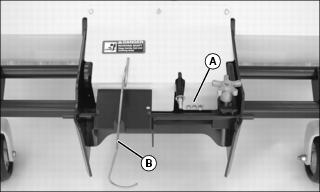

1. Remove one 5.7 cm (2.25 in.) shear bolt (A) and locknut stored at back side of broom.

2. Position PTO shaft support (B) as shown.

MX21780

3. Slide PTO shaft onto broom stubshaft.

4. Align hole in PTO shaft with hole in stubshaft.

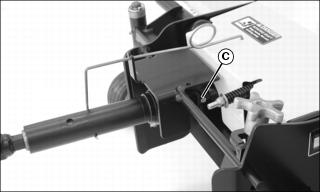

5. Install shear bolt (C) and locknut.
